How To SetUp ZUMIMALL Camera (Full Manual)

This manual contains all the contents of ZUMIMALL, how to add it, how to set up the functions of ZUMIMALL cameras, etc. It is constantly being updated.

The following guide uses Battery camera as demo, other ZUMIMALL cameras are similar, you can refer to it.

Connect ZUMIMALL Camera

The following guide uses Battery camera as demo, other ZUMIMALL cameras are similar, you can refer to it.

The ZUMIMALL camera has two connection modes, it is recommended to use the QR code mode to connect the camera.

QR Code Connection

1. Please start the ZUMIMALL camera before you connect it.

For battery-powered cameras, the user should press and hold the power button to activate the device. In the case of a smart doorbell, it is necessary to remove the insulating tab on the battery to begin the startup process. For other cameras, connection to a power source is required.

2. Open the ZUMIMALL APP, register and log in.
Then click on ‘Add Device’ or ‘+’ to connect your camera, select your ZUMIMALL camera and click on Next.

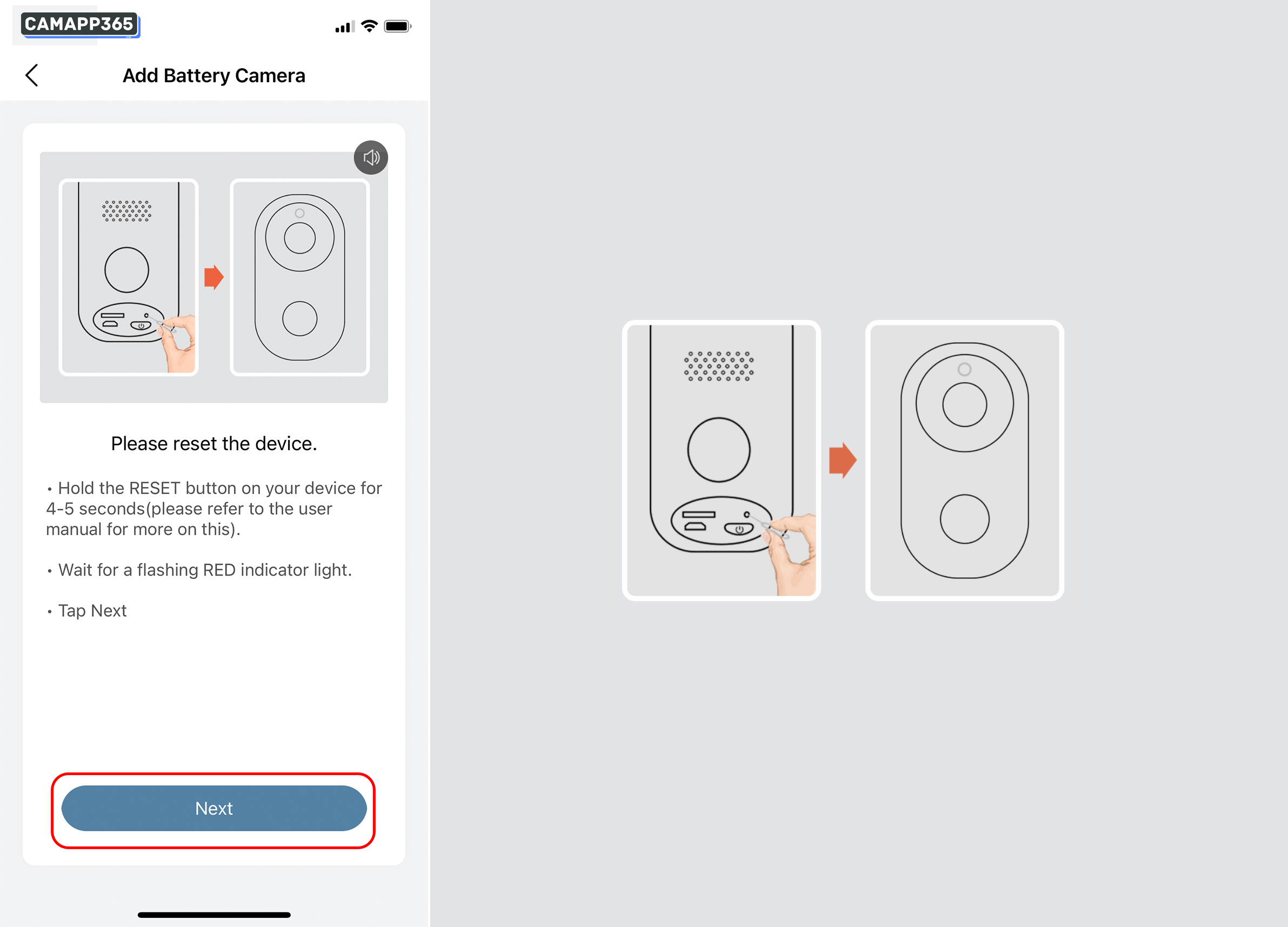

3. If you are using the ZUMIMALL camera for the first time, you do not need to reset it, you can see the flashing red light, just click Next.

If the red light is not flashing, please reset the ZUMIMALL camera.

4. Make sure your wifi is 2.4GHz, if not, connect to 2.4GHz wifi and enter your wifi password, click Next.

Make sure your wifi name and password are correct. zumimall cameras only support 2.4GHz wifi.

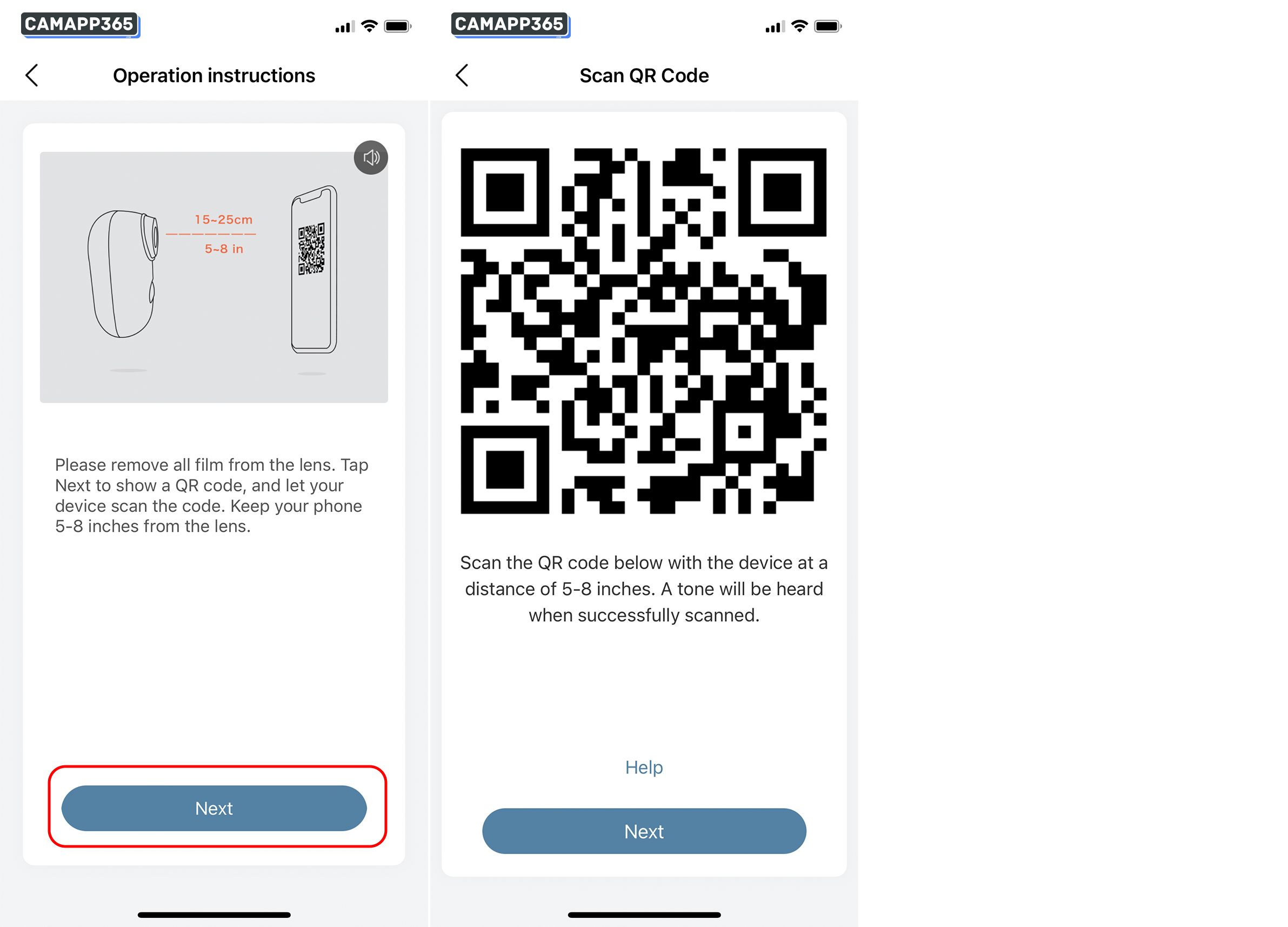

5. Please remove all film from the lens. Tap Next to show a QR code, and let your device scan the code. Keep your phone 5-8 inches from the lens.

After the camera recognize the QR code, it will sound“ bugu” , tap “next”.

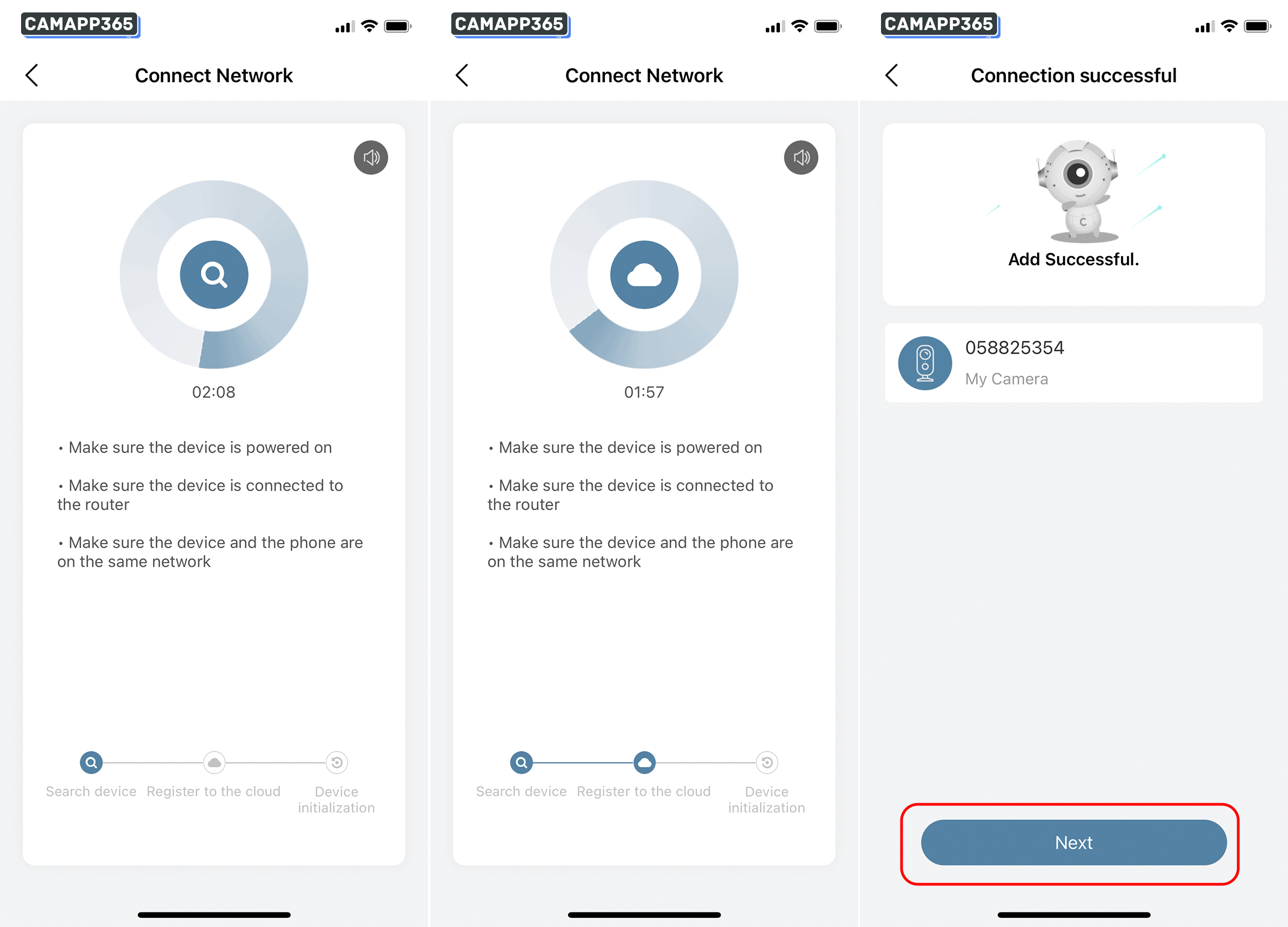

6. Now wait for the ZUMIMALL camera to connect to your wifi and access the internet, usually around 60 seconds for a successful connection.

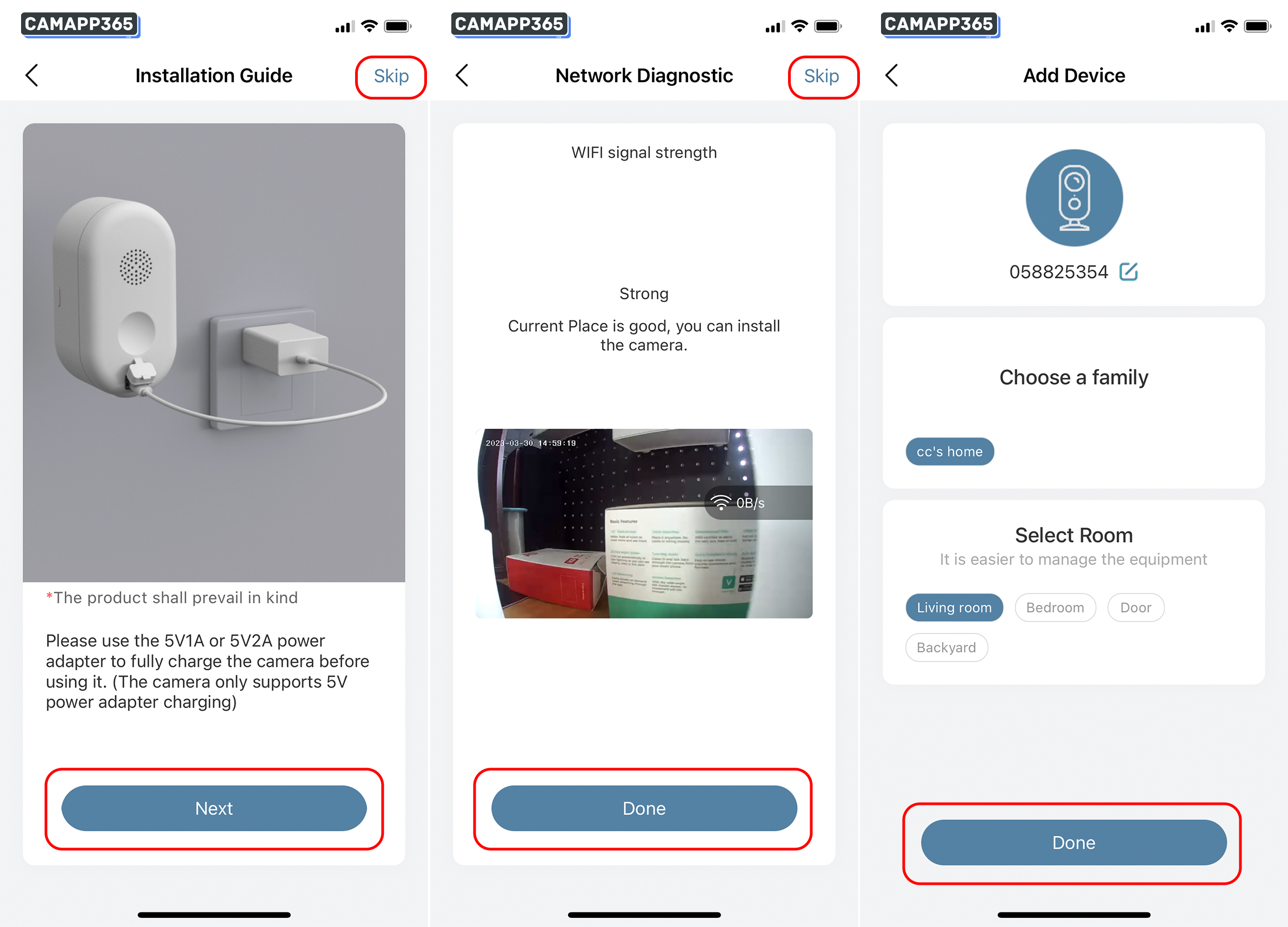

7. After successful connection, the app will show you the installation guide and wifi signal test, you can simply click Skip.

AP Network Connection

When the ZUMIMALL camera does not scan the QR code, you can try to connect to the camera using the AP network mode

1. Please start the ZUMIMALL camera before you connect it.

For battery-powered cameras, the user should press and hold the power button to activate the device. In the case of a smart doorbell, it is necessary to remove the insulating tab on the battery to begin the startup process. For other cameras, connection to a power source is required.

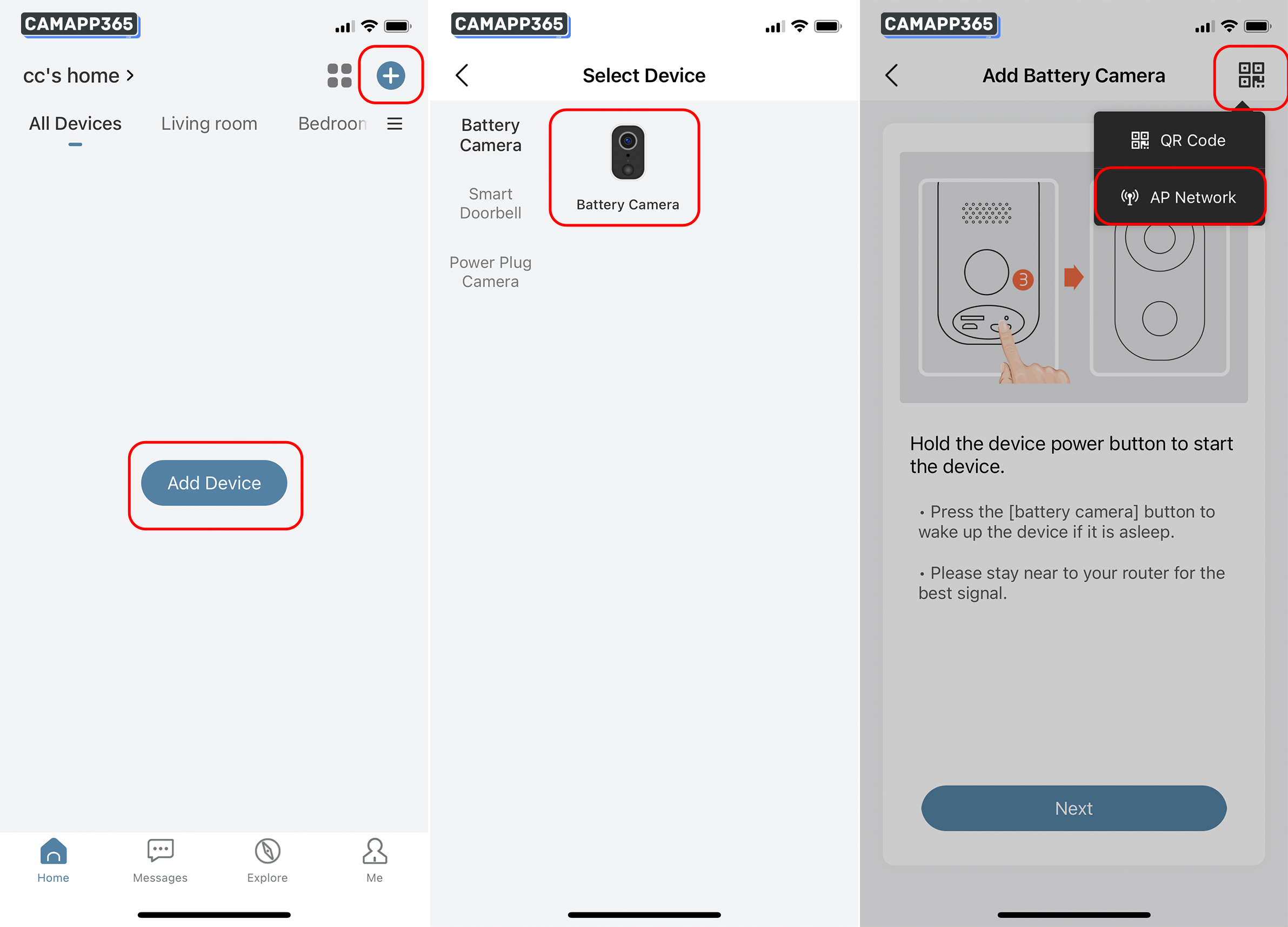

2. Click on ‘Add Device’ or ‘+’ to connect your camera, select your ZUMIMALL camera and click on the top right corner to select the AP network mode.

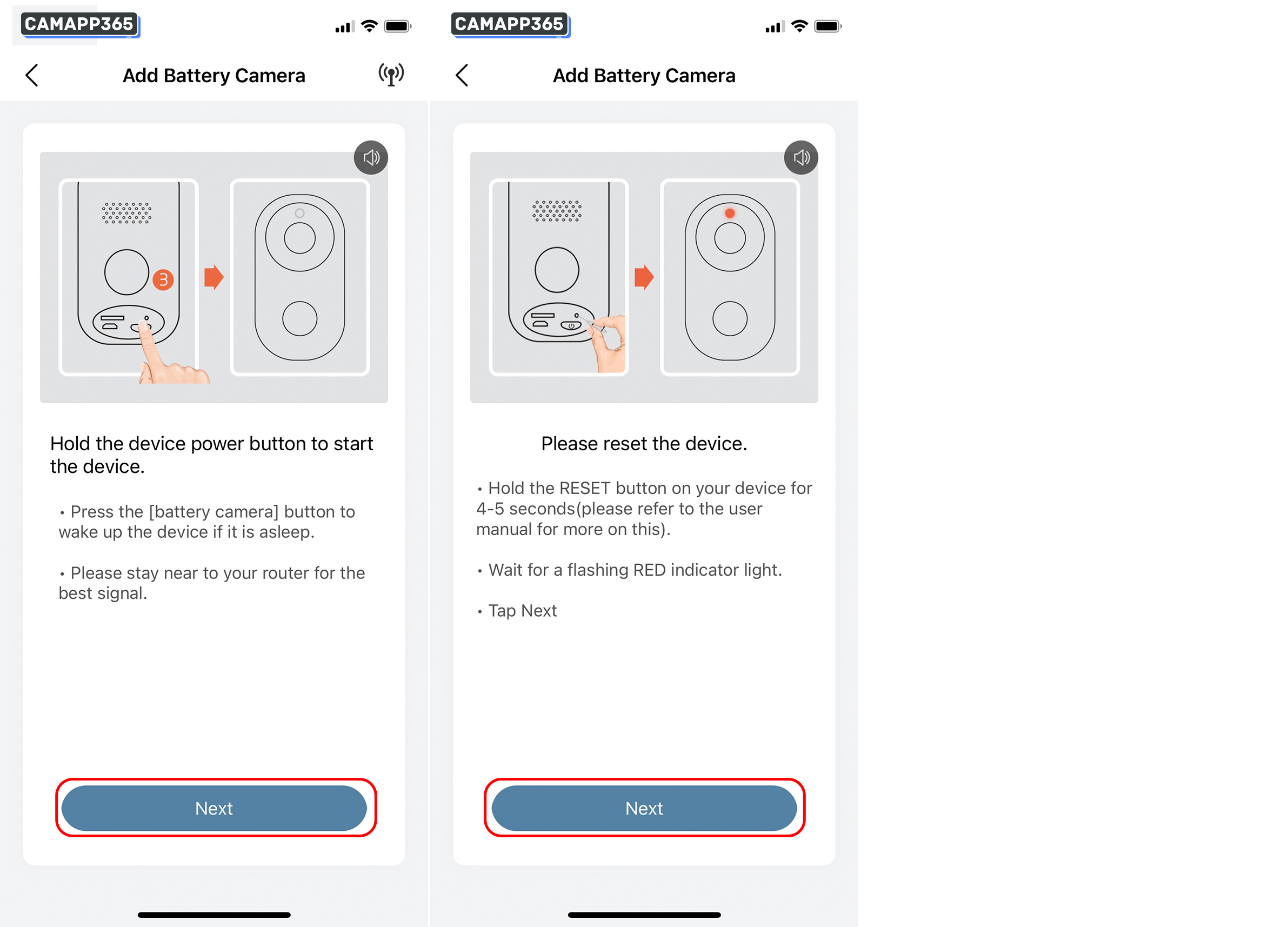

3. Make sure that your ZUMIMALL camera is activated and flashing the red light, then click on Next.
If the red light is not flashing, please reset the camera.

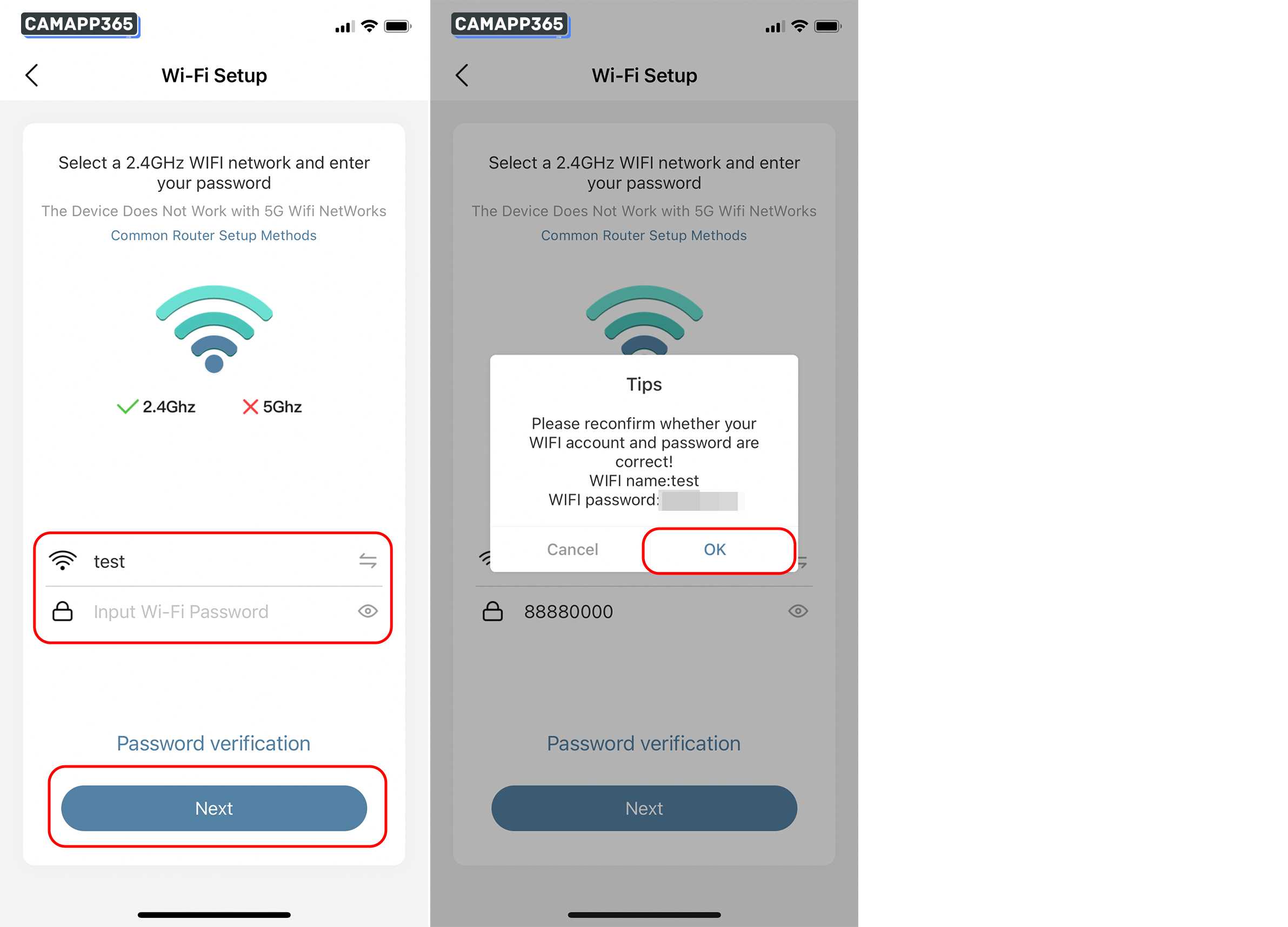

4. Make sure your wifi is 2.4GHz, if not, connect to 2.4GHz wifi and enter your wifi password, click Next.

Make sure your wifi name and password are correct. zumimall cameras only support 2.4GHz wifi.

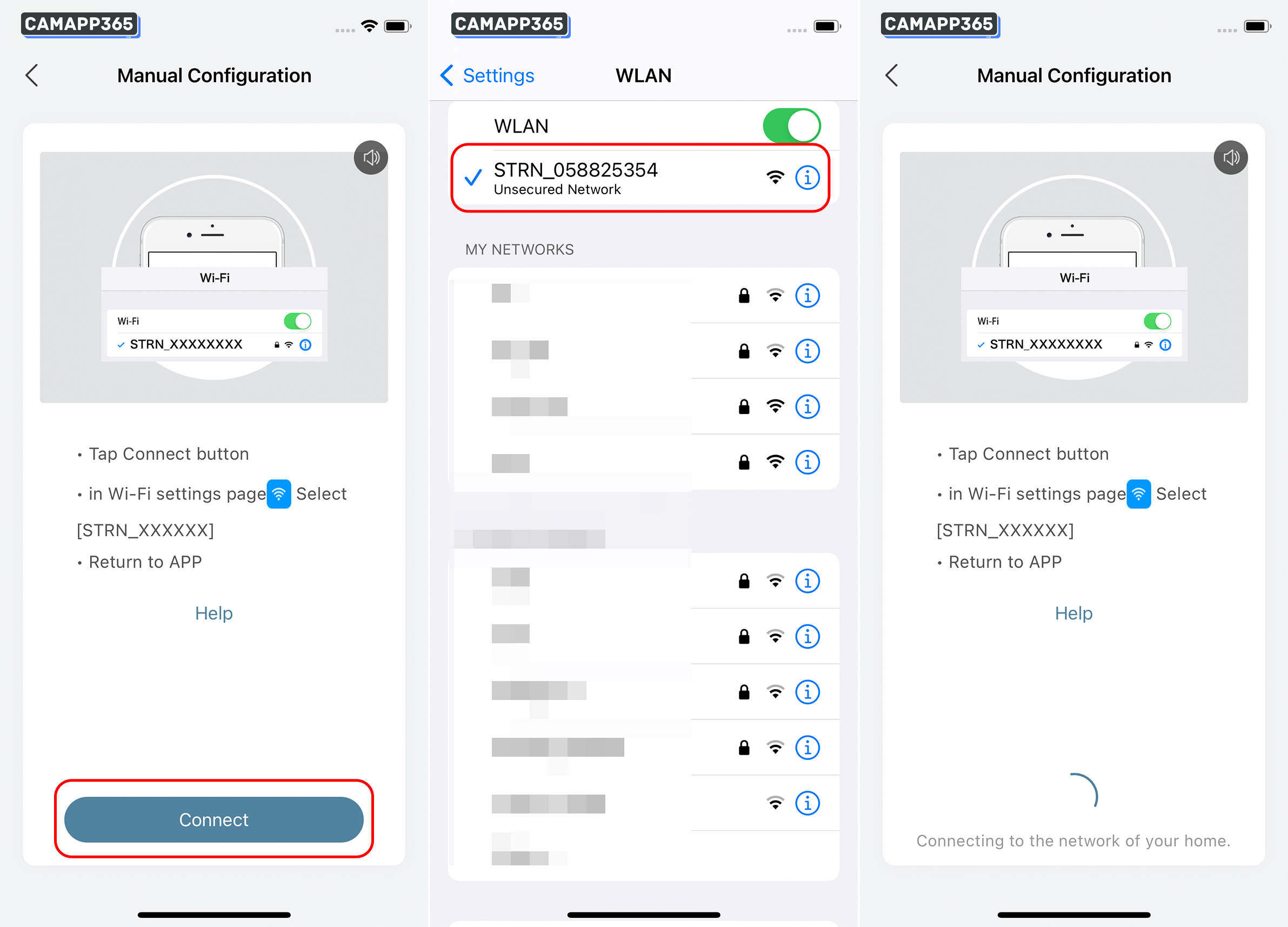

5. Click on the ‘Connect’a button, then go to the phone settings to connect to the [STRN_XXXXXX] camera wifi, and return to the ZUMIMALL APP after connecting.

6. Now wait for the ZUMIMALL camera to connect to your wifi and access the internet, usually around 60 seconds for a successful connection.

7. After successful connection, the app will show you the installation guide and wifi signal test, you can simply click Skip.

Processing Steps of ZUMIMALL Camera and Wi-Fi connection failure

1. Please make sure you are using 2.4GHz Wi-Fi. In our experience, most users fail to connect the WI-Fl because of selecting 5GHz Wi-Fi and
   adding the camera incorrectly.

2. Make sure you use the correct Wi-Fi password and a fast Wi-Fi network.(Note: It requires that the Wi-Fi password doesn’t have special characters such as (/l!@#$))
3. Make sure the QR code on the phone screen is normal and the distance between the phone and the camera lens is 10-15cm (3.9-5.9inch) during the scanning process.
4. If none of the above steps take effect, please try to re-download the APP, restore the product to factory settings, restart the router, and then add it again.
5. After multiple attempts have failed, please contact customer service

Share ZUMIMALL Camera

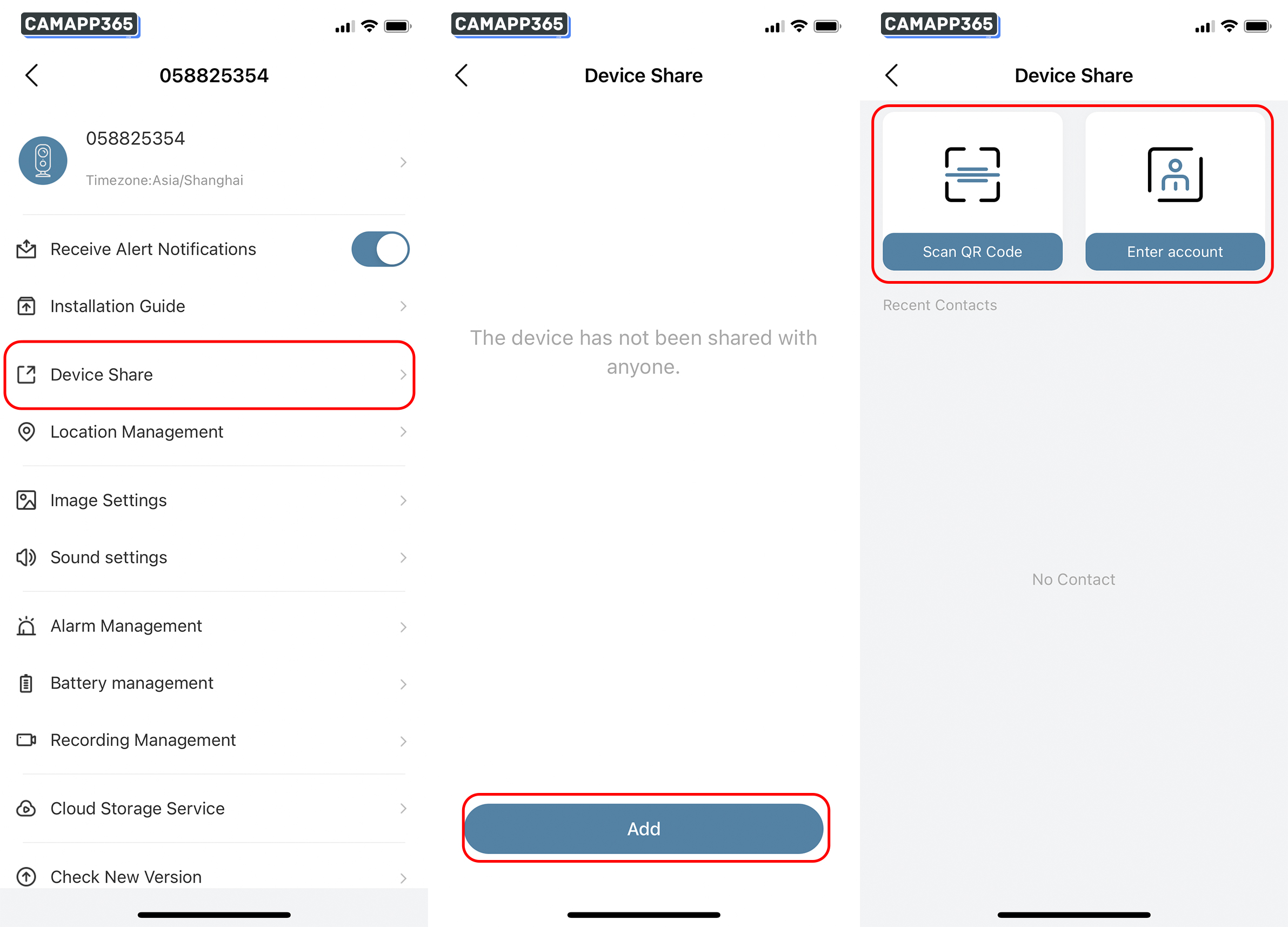

You can share ZUMIMALL camera to your family, while multiple people use the camera. Your family members need ZUMIMALL account to share.

Enter the camera settings interface, click Device Share > Add > Select sharing mode.

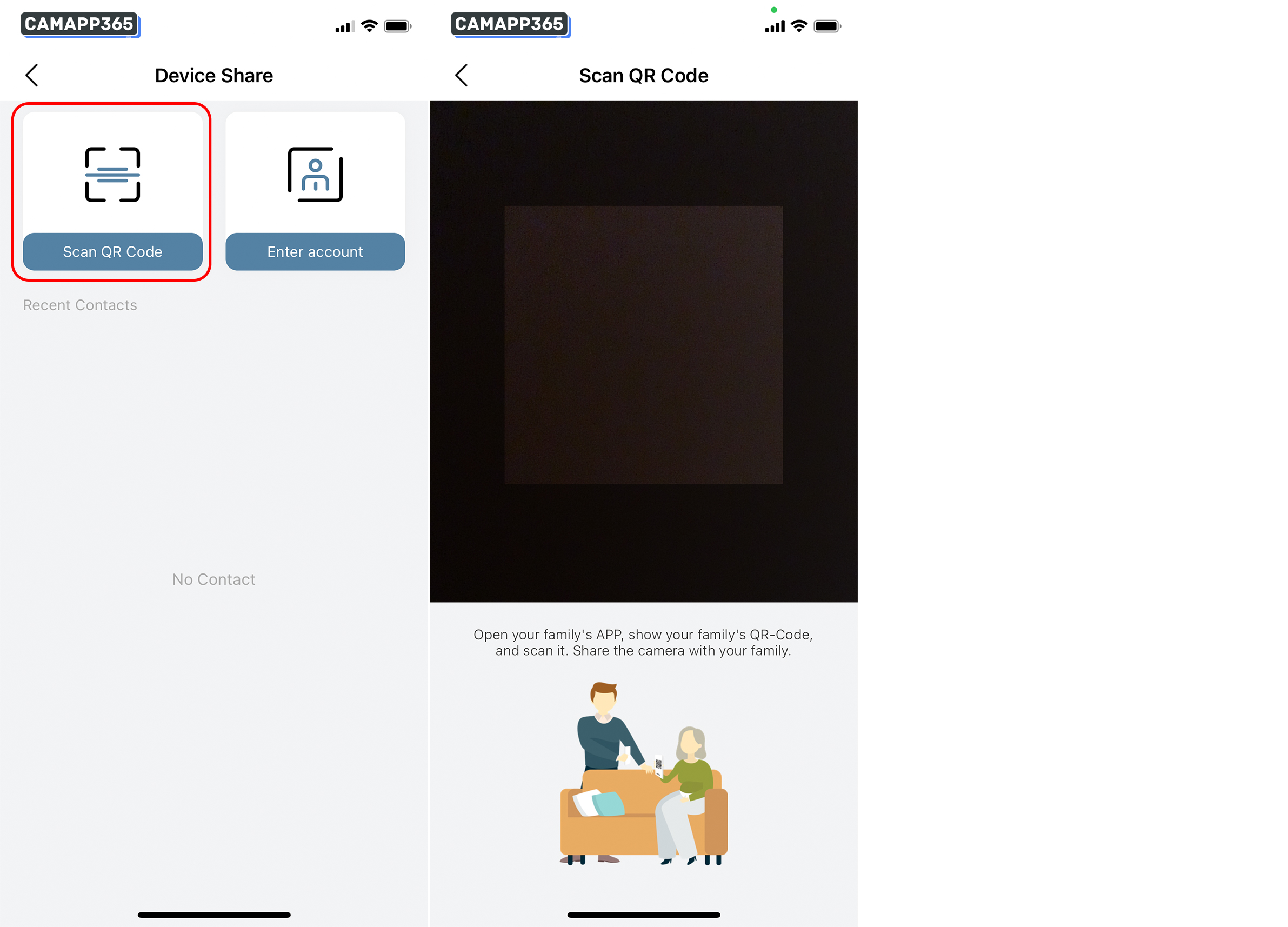

Scan OR Code

Open your family’s APP, show your family’s QR-Code. and scan it. Share the camera with your family.

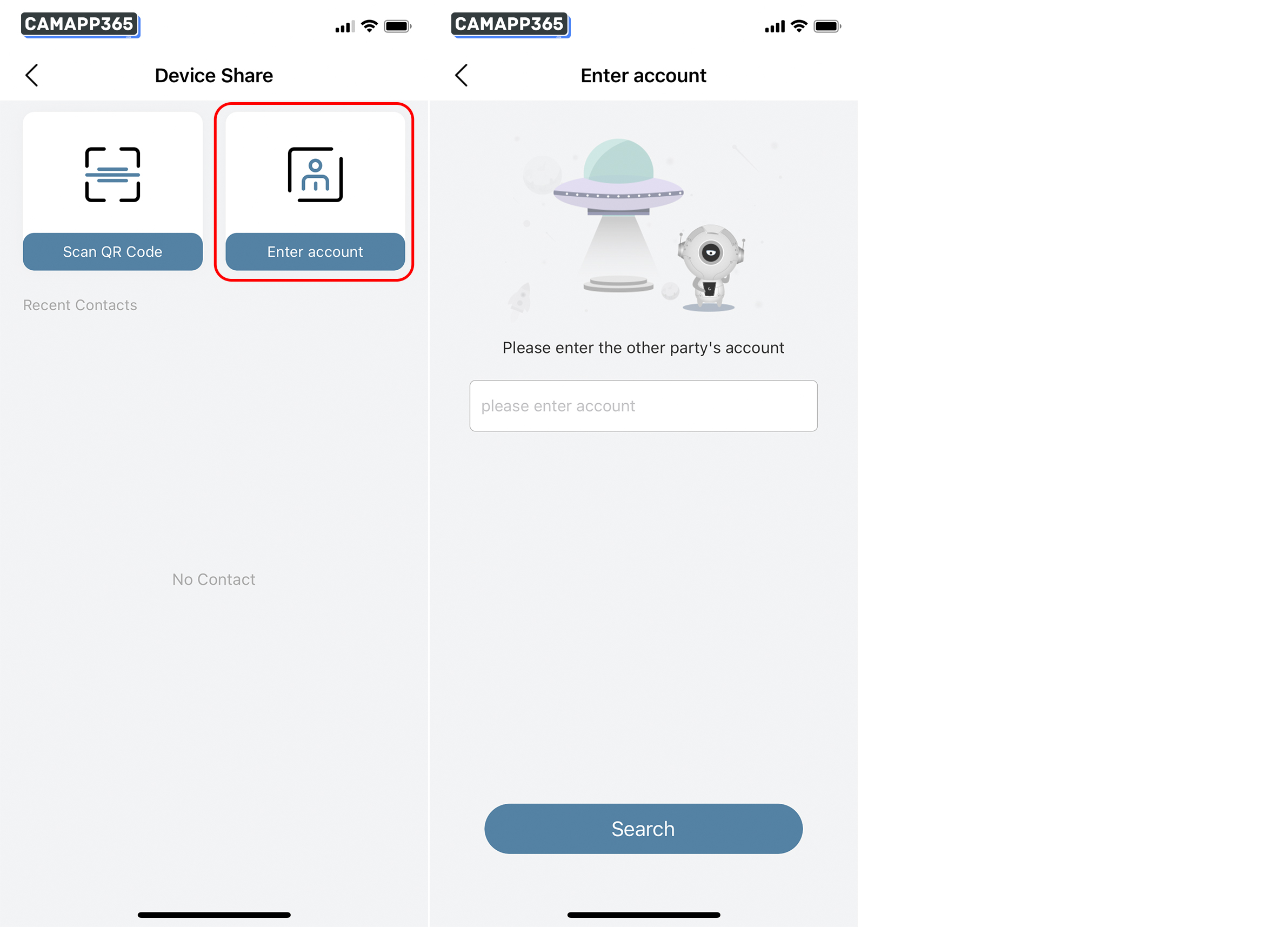

Enter account

Please enter the other party’s account
