Manual information
Brand：Wansview
APP: Wansview Cloud
Model：W9
This manual applies to cameras using the Wansview Cloud app

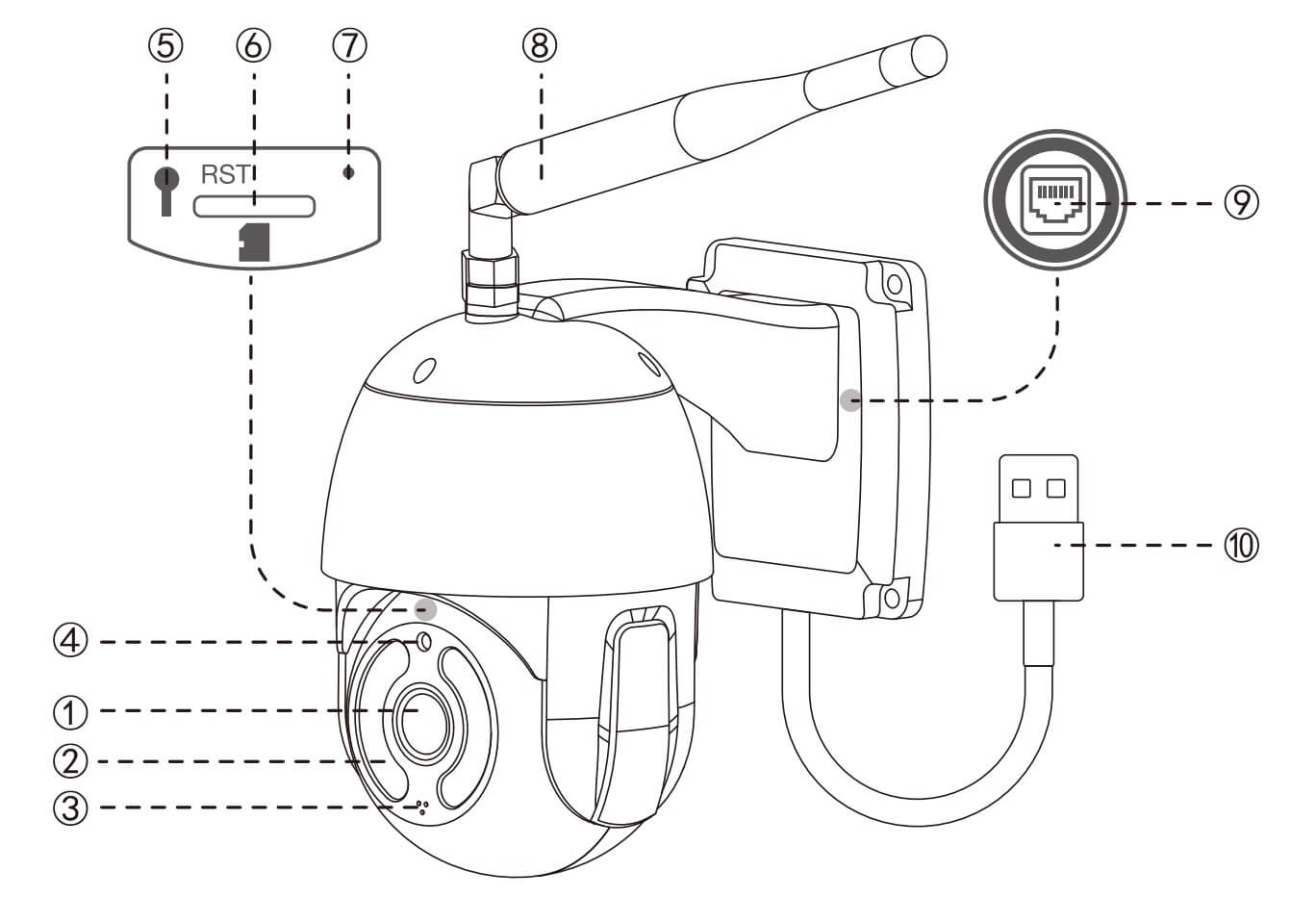

Product diagram
1. Lens
2. Night vision LED
3. Microphone
4. Photoresistance
5. Reset button
6. TF card slot
7. Indicator light
8. Antenna
9. RJ45 interface
10.USB interface

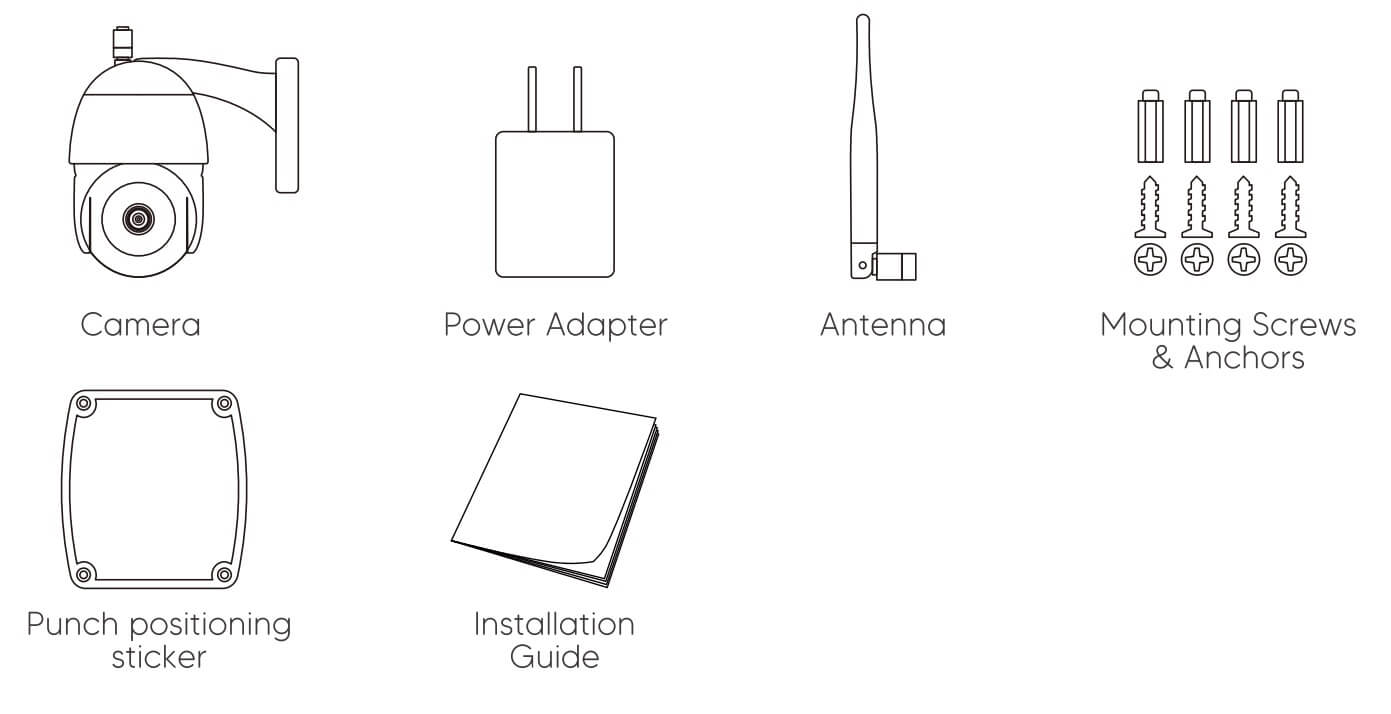

What’s in the Box
Indicator lights status
| Light Status | Camera Status |
| Red light on | Camera is powered on |
| Red and blue light alternately flashing | Waiting to connect now |
| Blue light flashing | Camera is connecting Wi-Fi |
| Blue light solid | Succeeded to connect Wi-Fi |
| Red light quickly flashing | 1. Reset camera to factory setting 2. Camera is upgrading firmware |
Warm note: Please make sure your router is connected to Internet.
User’s Guide
1. Download and Install
Go to the App Store or Google Play to search and download “Wansview Cloud” APP on your smartphone. Or scan below QR code to get the APP,
2. Register Account
Open the “Wansview Cloud” APP and register an account with your email, and activate it.
Tips: Your password must be 8-16 characters, and contains at least the following three categories: numbers, uppercase letters, lowercase letters or special characters.
3. Add W9

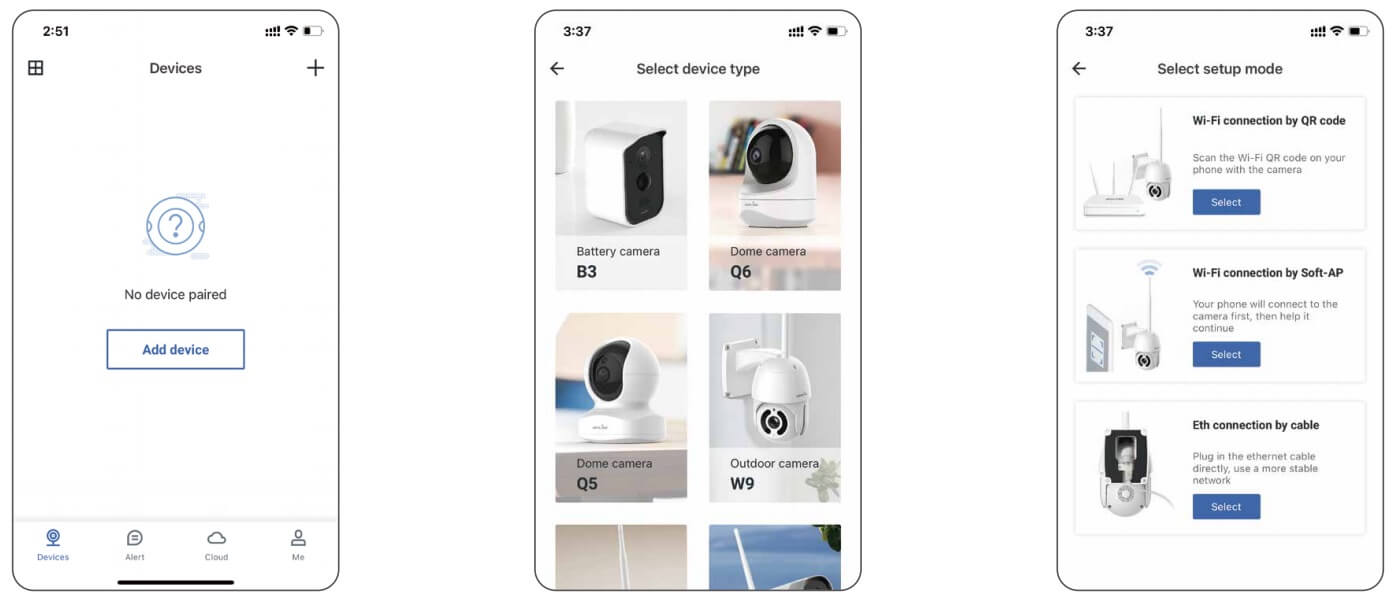

1. Click ‘Add Device’ or ‘+’
2. Select W9
3. Select Set-up Mode

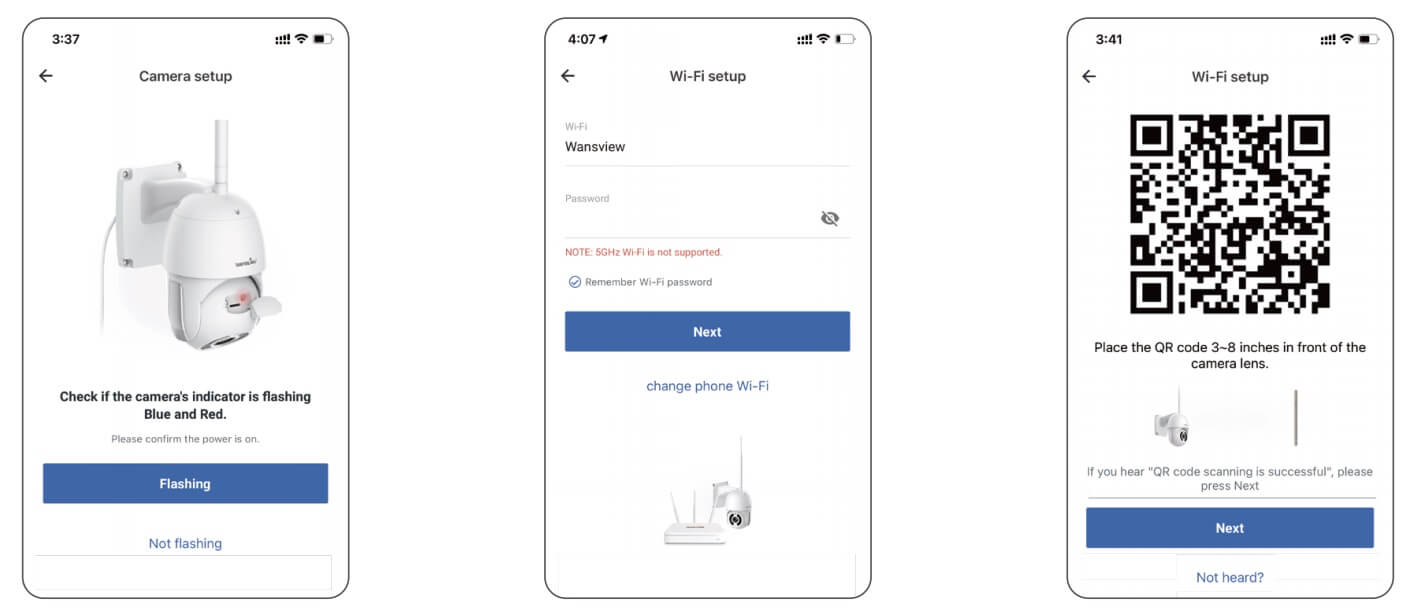

4. Device Power On
5. Wi-Fi setup
6. Scan the QR code

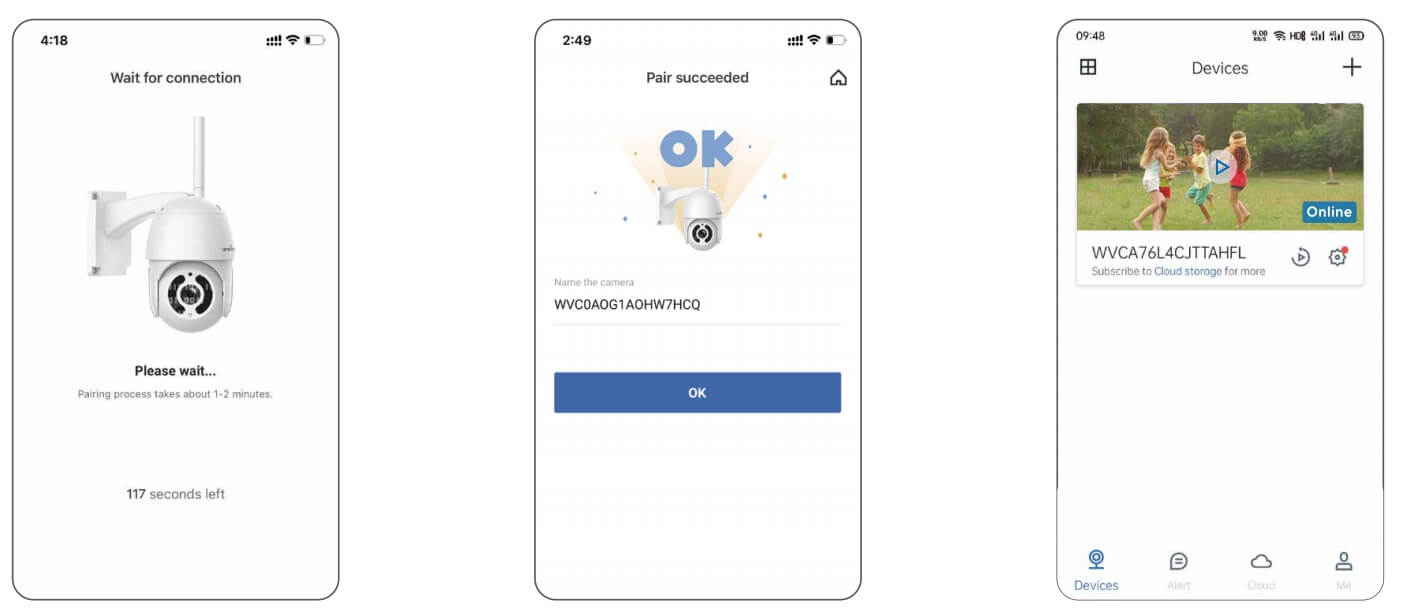

7. Wait for connection
8. Pair succeed
9. The device is online

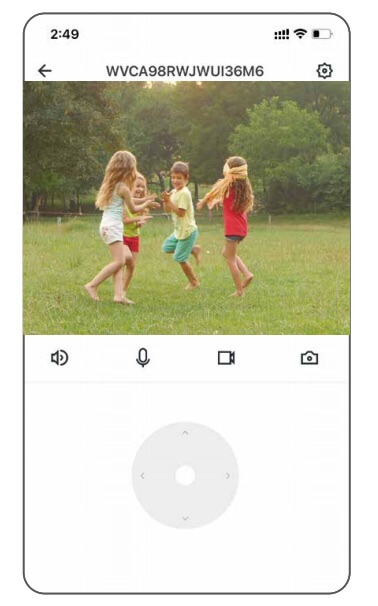

10. Live video
Tips:
- This outdoor security camera only works with 2.4GHz Wi-Fi, 5GHz Wi-Fi is not supported!
- Please put the camera near to the router during setting up the camera, after connecting the camera to Wi-Fi, you can place the camera to other place.
Note: Put the camera close the router(3 feet) during setting up the camera.
FAQ

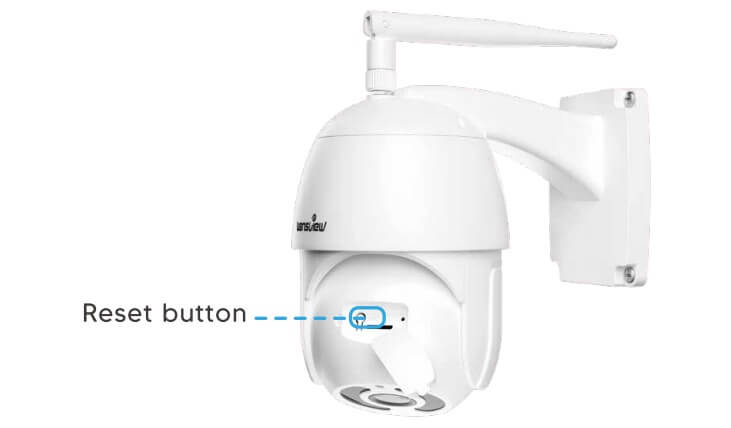

The camera can not connect to Wi-Fi ?
Please press the reset button on camera for 5 seconds until the red light flashes quickly and the camera says “reset is successful , Please wait for about one minute, then the camera will flash blue and red light alternately and you can reconnect it now.

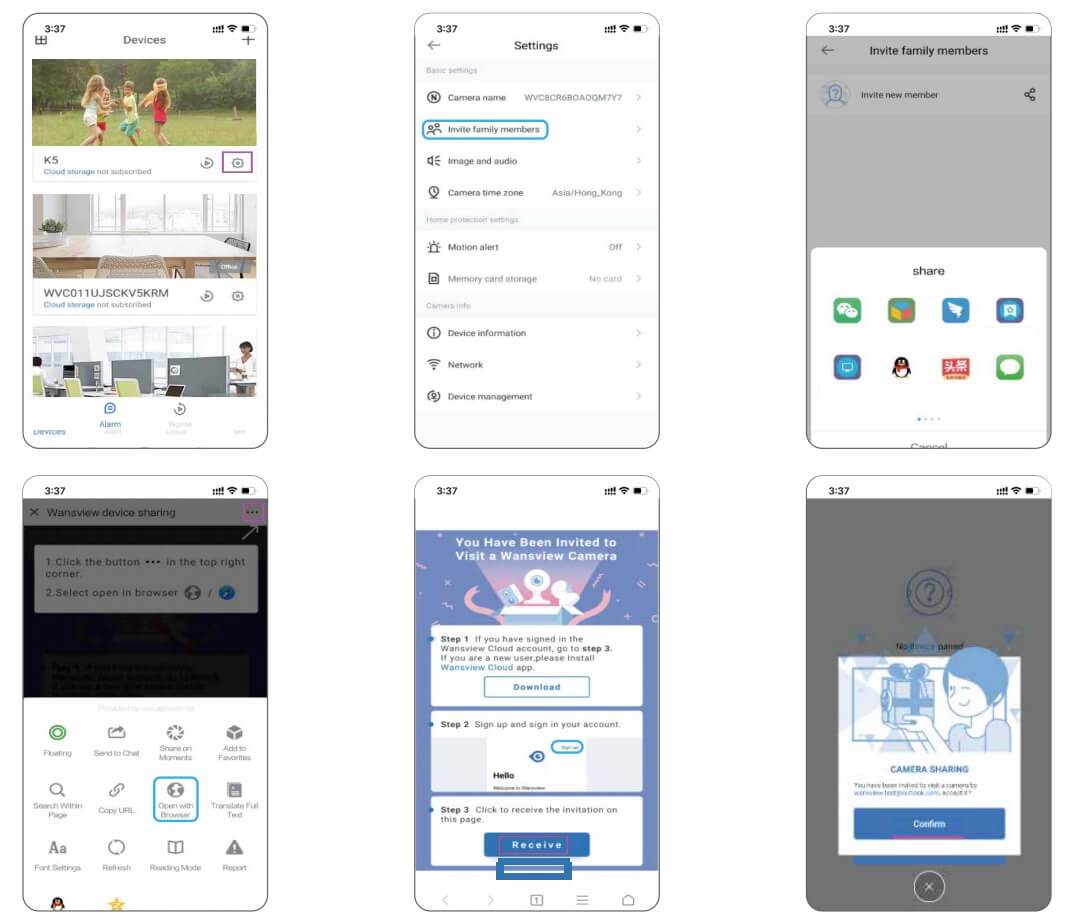

Share the camera to other phone.
Tap ” Settings-lnvite family members” or press
to enter share device, you can share camera feed with family members.
The shared member should download the Wansview Cloud app, and register an new account, then click “Receive”.
