littlelf smart WIFI camera littlelf smart app User Manual

Manual information

APP: littlelf smart

This manual applies to cameras using the littlelf smart app

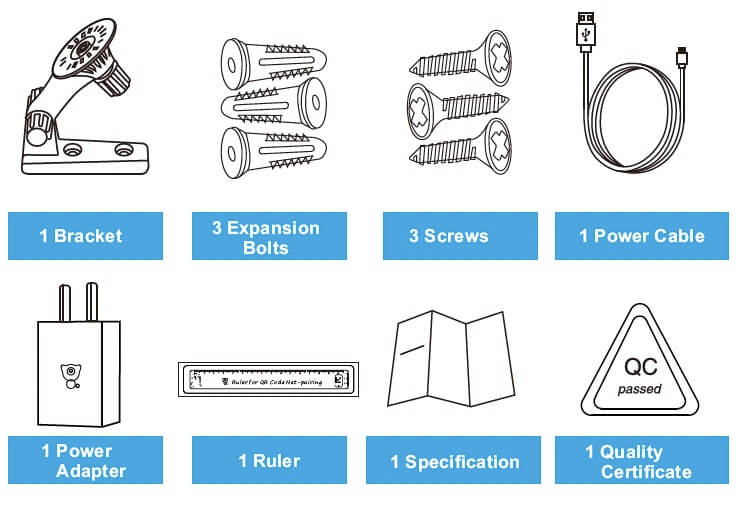

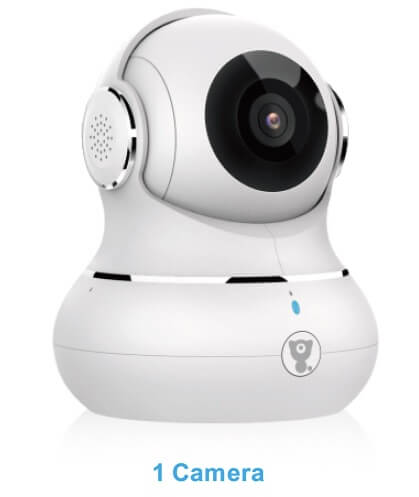

Product Packing List

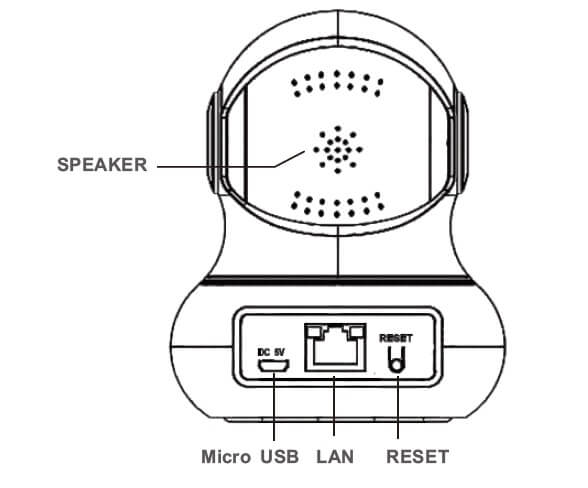

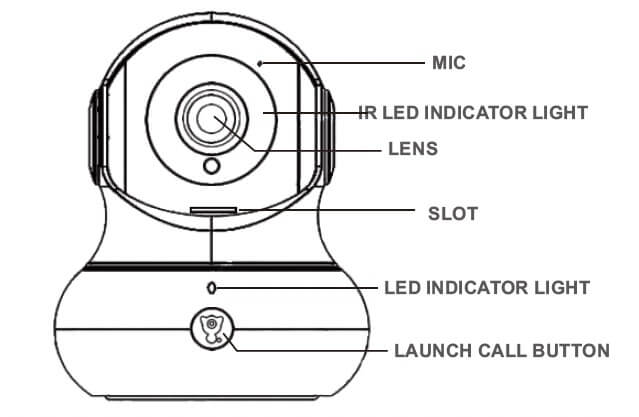

Appearance Brief

The model shown above is a schematic diagram. This diagram is used only as the specifification description, not for a specifific product.

Product Specififications

Product Instructions

APP Download and Installation

1). For Android devices, search in Google Play and download “Littlelf smart”; For iOS devices, download “Littlelf smart” in APP store.

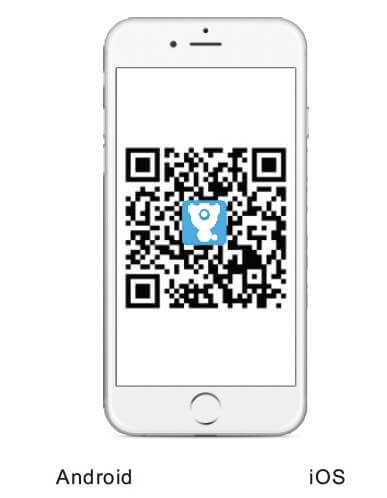

2). Scan the “Littlelf smart” APP QR code below, download and install it according to the APP hints to complete the download.

Notes: To ensure that the full functionality of the “Littlelf smart” APP works properly, allow the “Littlelf smart” APP to gain access to your mobile devices.

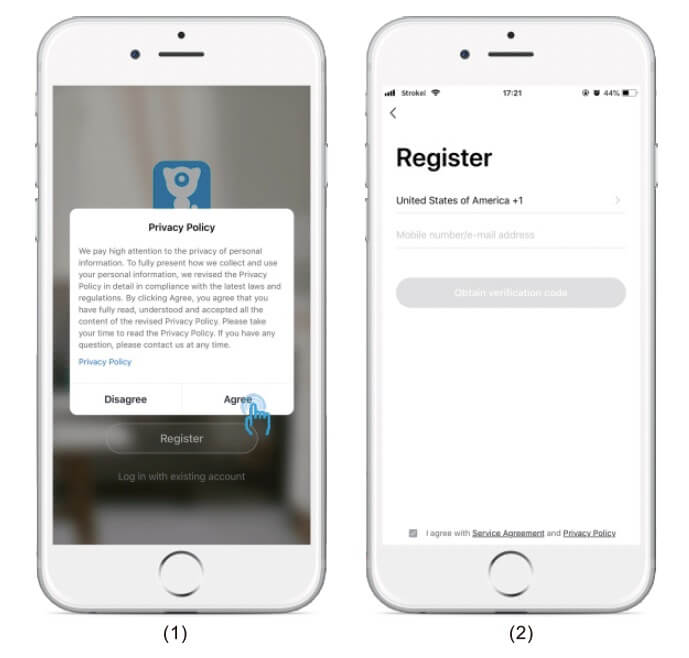

Accounts Registration

Open the Littlelf smart APP, click “Agree” of privacy policy and then register an account with a mailbox or mobile number, after registering successfully, log in the Littlef smart APP.

Notes:

1) Please tick “Agree” and “Service Agreement and Privacy Policy”;

2) If the verifification code is sent out over time due to network problems, please try again later;

3) If register with mailbox, please check the verfification code in spam mailbox if you didn’t receive.

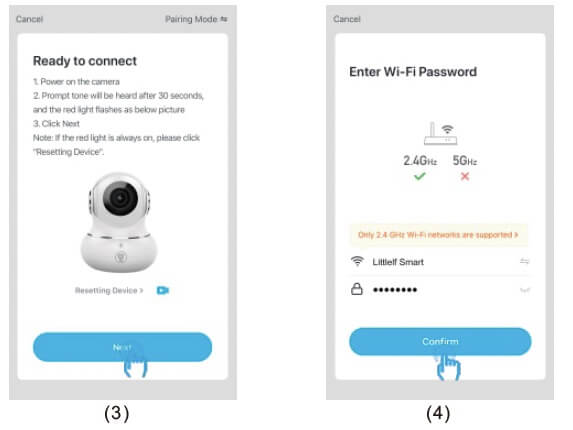

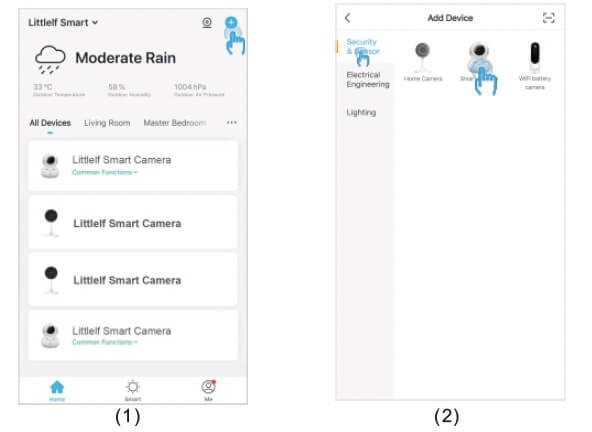

QR Code Net-paring (Recommendation)

Notes:

1) The passwords do not support special characters such as @,#,%,&

2) Place the camera next to the router before confifiguring

3) QR Code Net-paring and Smart Confifiguration only support 2.4Ghz wififi

4) Make sure the network of your mobile devices are under the same network router of the camera

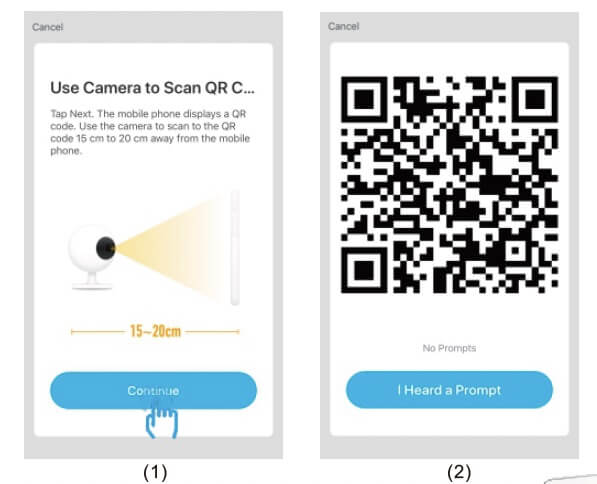

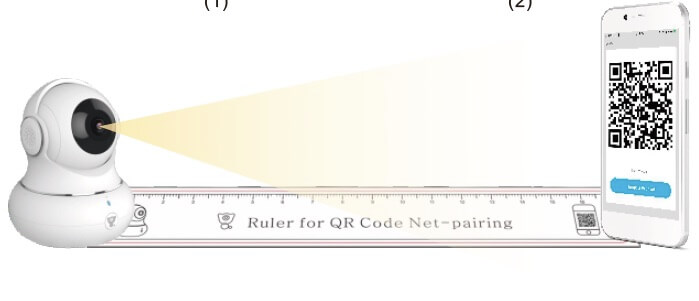

QR Code Net-paring (Recommendation)

Please place the ruler on a horizontal table, and place the camera and mobile phone in the corresponding positions according to the picture on the ruler. Within this range, the mobile phone can be moved slightly left and right, up and down to ensure that the camera can scan the QR code on the phone. Heard the beep, click “Heard the Sound”.

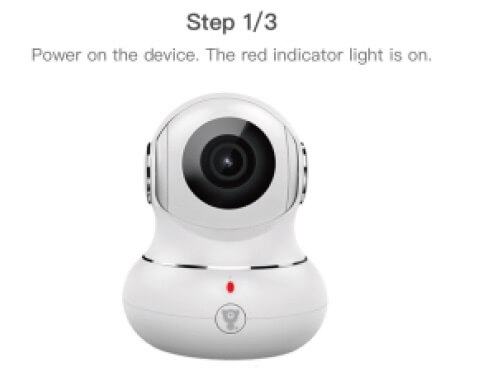

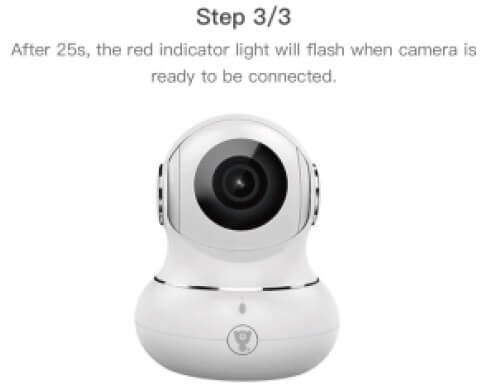

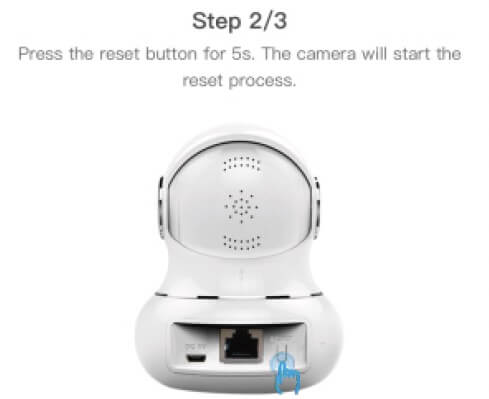

Reset Camera

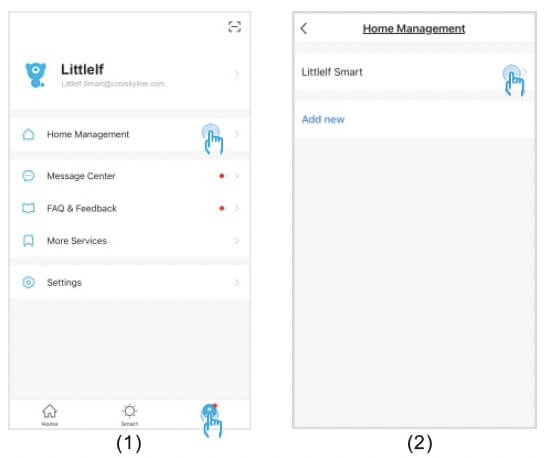

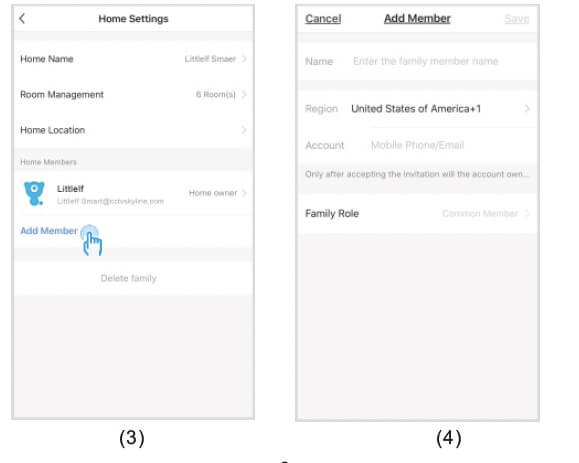

Family Sharing Setting

Note: (Before family sharing)

1. The shared person should download littlelf smart APP fifirstly;

2. Choose the country on the APP as same as the master account when register the APP.

Operation Guide

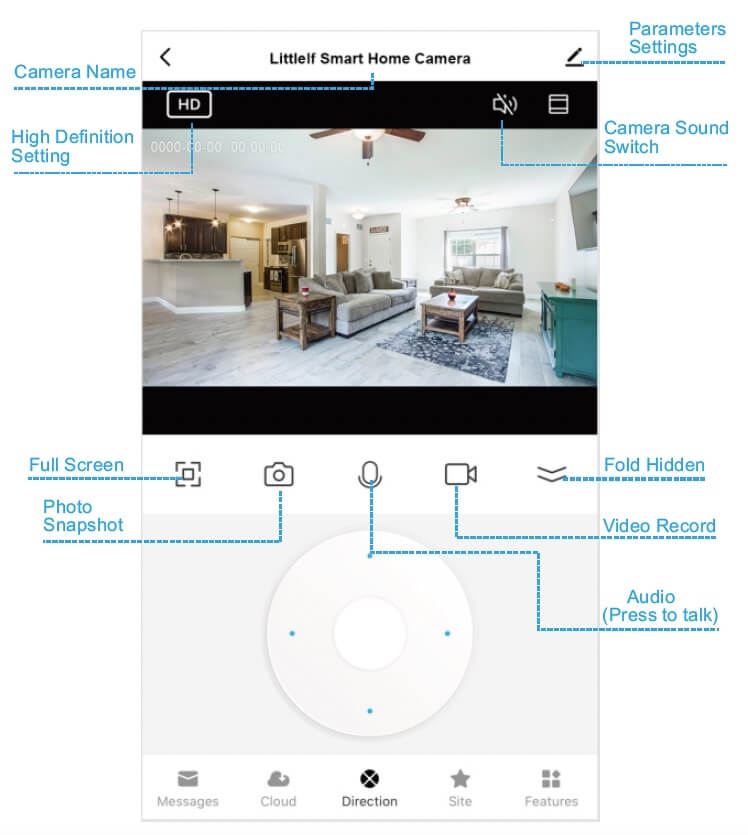

Interface Introduction

When accessing to the current interface, you can slide or zoom the video interface, switch to play sound, capture High-Defifinition (HD) pictures, view the real-time video with full screen, snapshot real-time pictures and launch an intercom, save pictures and record video to local album, select the HD mode of the camera.

Detection Alarm Messages

The shortcut to check detection alarm messages.

Click All messages, there is a video viewing portal in each alarm message. If the cloud storage is purchased, it will jump to the event recording recorded by cloud storage; if the cloud storage is not purchased and there is a SD card recording, it will jump to the event recording recorded by the SD card; if there is neither a cloud storage recording nor a SD card recording, it will jump to real-time video.

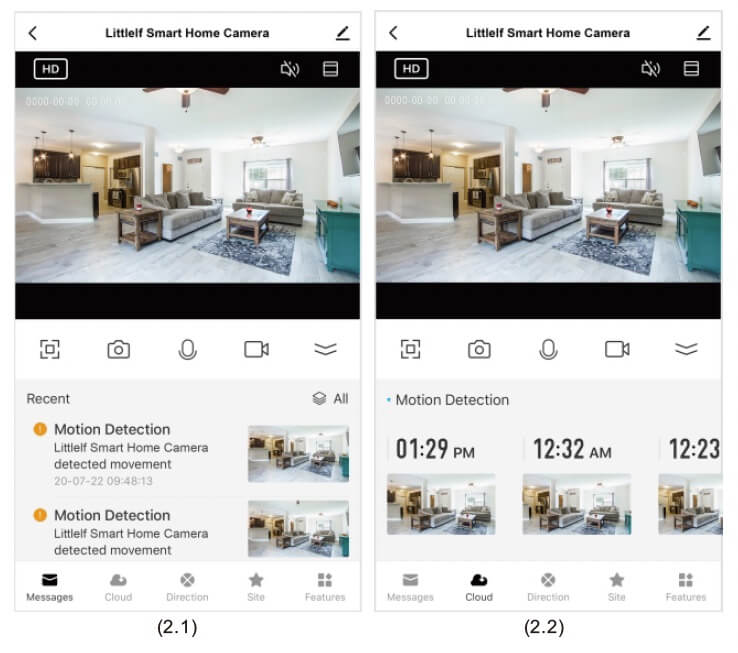

Video Cloud Storage

Support record the latest 14 days’ event recordings. 90 days free trial. 4 plans can be chosen as your needs.

Sites

Max save 6 site points. Just click on the image of the favorite, the camera will automatically turn to that location. Support timing to any site, the camera will automatically turn to the site when time is up.

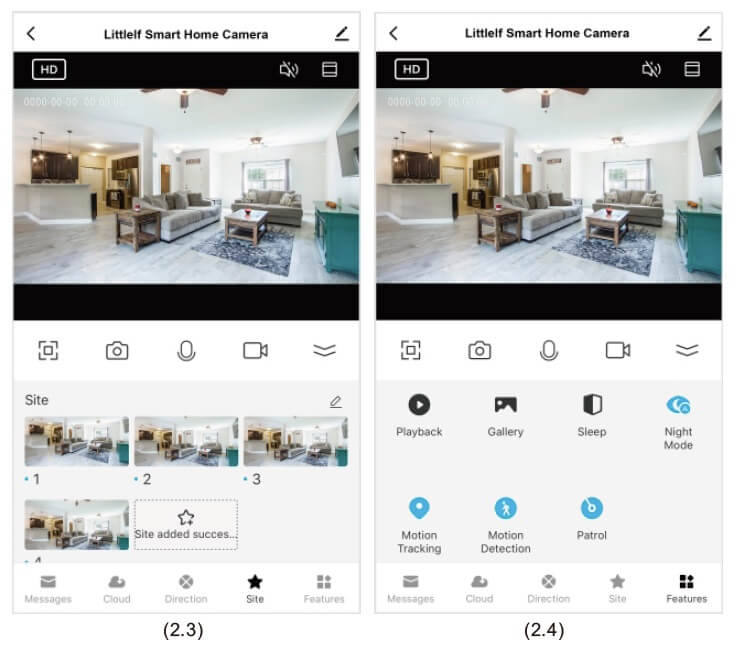

Features

Direct quick operation some function buttons.

Motion Tracking: Turn on motion tracking, the camera will follow the movement of the object when it detects the object is moving.

Auto-Tracking Movement

Turn on motion tracking, the camera will follow the movement of the object when it detects the object is moving.

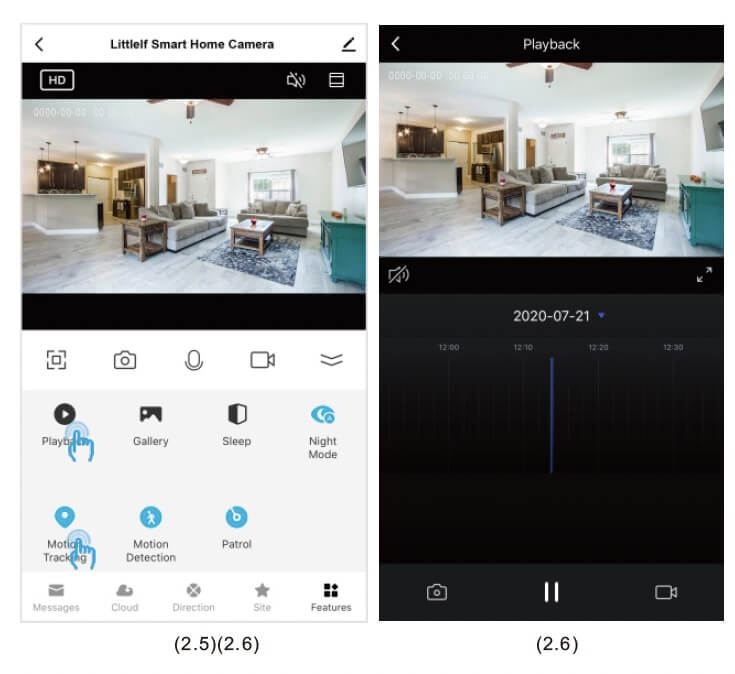

Playback

Accessing to the real-time video, enter the playback interface. Then you can capture pictures, watch and record video during the time you need.

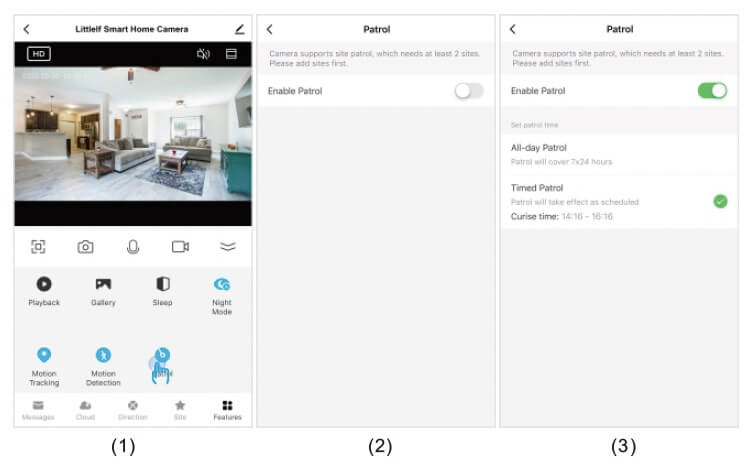

Sites Patrol

Turn on this function, the camera will automatically patrol all sites and stay at each site for 10 seconds.

Patrol Time

All-day Patrol: Patrol will cover 7×24 hours

Accessing to the real-time video, enter the playback interface. Then you Timed Patrol: Patrol will take effffect as scheduled

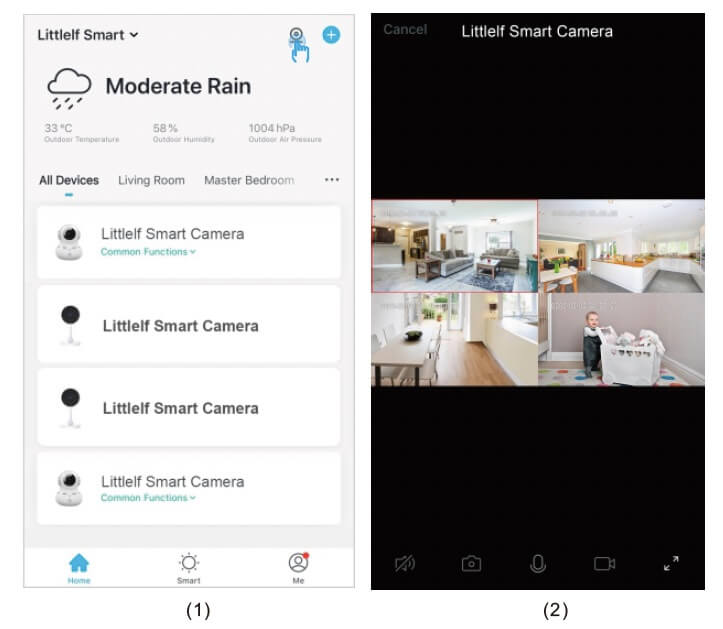

Multi-View

Support to watch live videos of up to 4 cameras at the same time.

Basic Settings

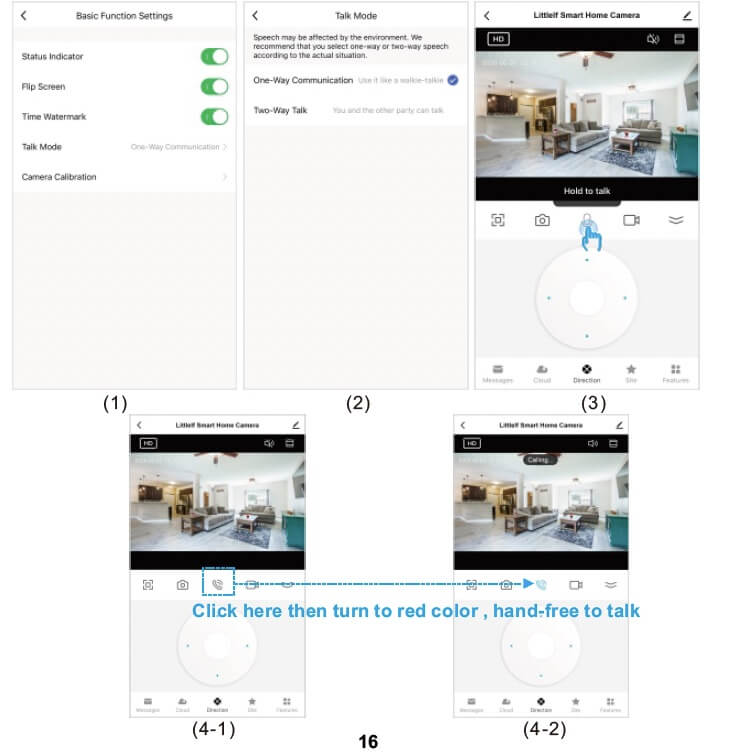

Basic Function Settings

Status Indicator : Turn on/offff the indicator of the camera;

Flip Screen: Select the option when the camera is inverted;

Time Watermark: Turned on it, time will be displayed in the upper left corner of the video;

IR Night Vision: It has 3 mode, auto, on and offff. Since there is the glass reflflection, please do not turn on the night vision mode through the glass.

Talk Mode: One-way talk and two-way talk

One-way Talk: Only one-way communication is available. After you send a voice message, the other party can receive it and then reply you with a voice message.

Two-way Talk: You and the other party can talk and listen to each other simultaneously.

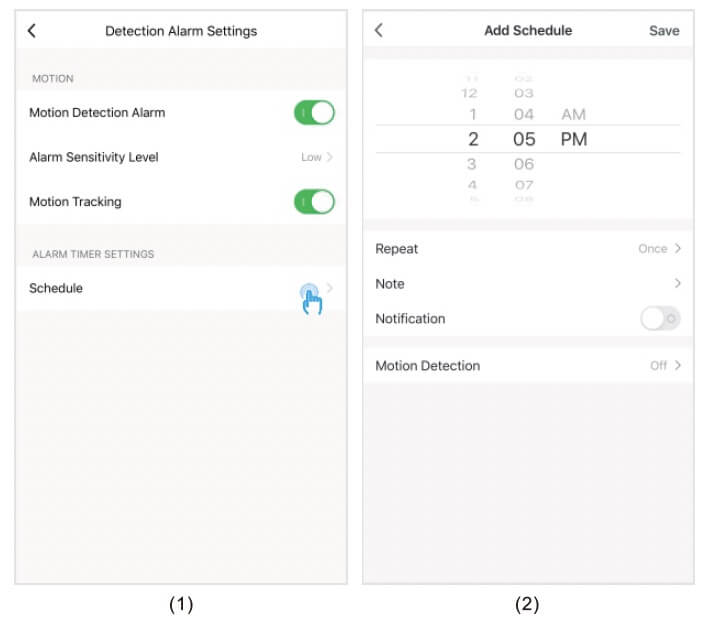

Detection Alarm Settings

Before using movement detection alert, please plug a TF card into the camera or have successfully purchased cloud storage service.

Motion Detection: Turn on motion detection, if the camera detects object movement, and the app will send a notifification;

Alarm Sensitivity Level: Motion detection has low, medium and high level;

Motion Tracking: Please refer to page 12;

Alarm Timer Settings: Customize the set time to turn motion detection on or off

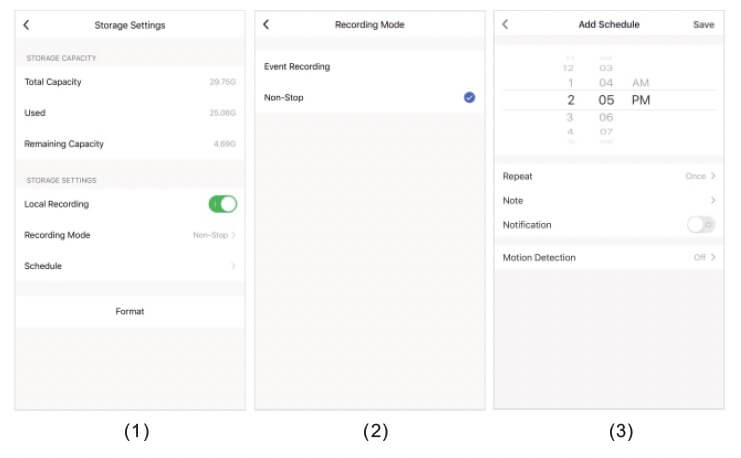

Memory Card Settings

The camera has microSD card slots and local backup, supports a TF card up to 128GB. You can choose recording mode and set the schedule to open or close the switch.

Notes:

1. If the video saved by SD card, please turn on the Local Recording in the memory card settings.

2. The SD card must be formatted on the computer before inseting the SD card.

3. Unpulg the power cable the power before inserting the SD card, otherwise it will burn the SD card.

4. One memory card can only correspond to one camera. If you want to use it in other cameras, please format it fifirstly.

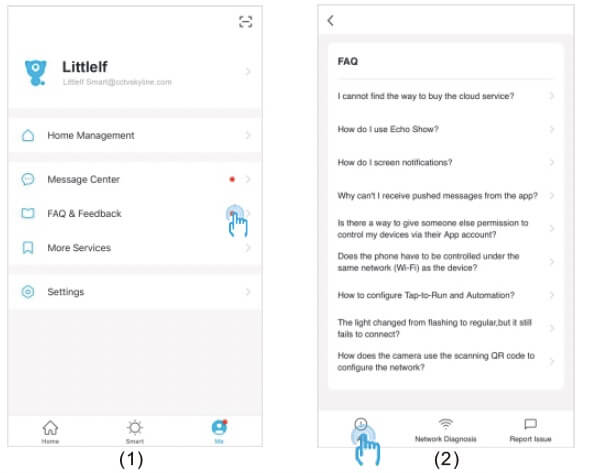

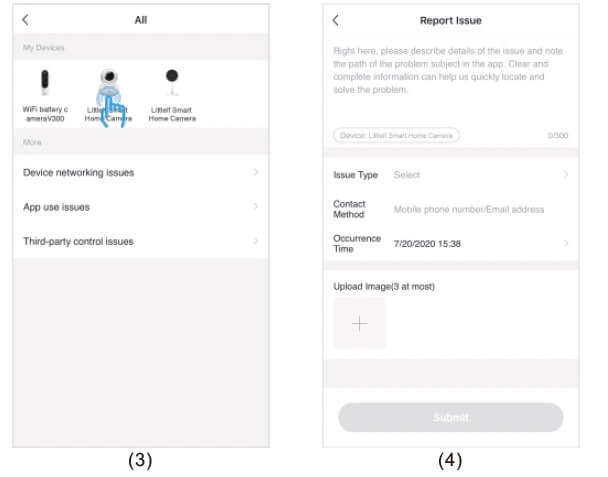

Help Center&More Service

In the help center, you can fifind the solution of the problem. Click all, you can fifind more solution of the issue. If all the above solutions can’t solve your problem, you also can submit the question by clicking the “Report Issue”. Then you will get the answer in 24 hours.

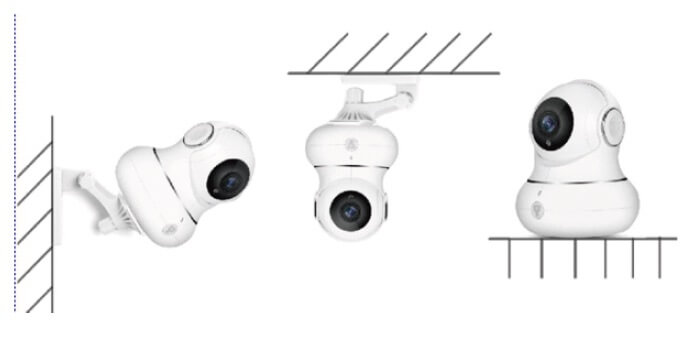

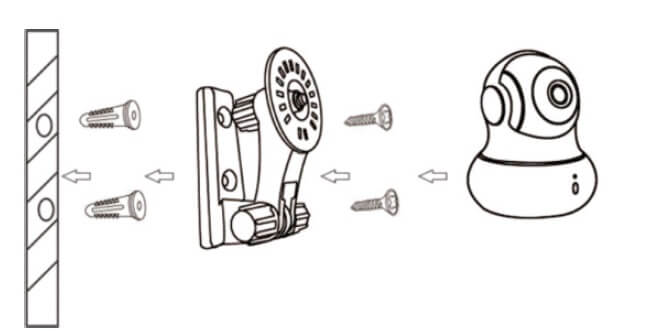

Installation Instructions

1. Select the installation position and drill holes on the suitable installation surface.

2. Knock the expansion bolt into the hole.

3. Screw the support.

4. Rotate the camera to the bracket (product installation view).

Notes: The inverted camera causes the image to be reversed, so you need to select the reverse in the view angle option of the Littlelf Smart APP settings.

Troubleshooting

1) APP can’t be registered successfully

1. Please check if the network of the mobile phone is normal;

2. Please tick the software service agreement and privacy policy;

3. Please check if the verifification code is in the spam mail;

4. Please use WIFI to register if mobile network cannot be registered. If the mobile network and WIFI prompts cannot obtain the server address, please check if other software can be used normally;

5. During installation, please allow the app to obtain your location and all permissions, the system will automatically arrange the best server;

6. If above solutions still can’t be effffective, we recommend you to uninstall and install the app again, the current location and all permissions are allowed during the installation)

2) Unable to connect to the network

A) Unable to connect to WiFi:

1. Please enable the DHCP of the router;

2. Please make sure the camera is not in the blacklist in MAC settings of the router;

3. Turn offff the 5GHz wififi in the router (Note: Please contact the router manufacturer if you can’t turn offff the 5Ghz wififi);

4. After connecting to the 2.4GHz wififi, please check your mobile phone if can access the Internet;

5. Make sure the network of your mobile devices are under the same network router of the camera;

6. After the network is normal, reset the camera and reconnect.

B) Unable to connect to wired:

1. Please enable the DHCP of the router;

2. Please make sure the camera is not in the blacklist in MAC settings of the router;

3. Connect the network cable to your computer fifirstly, then check the computer and obtain the IP address. If the IP address of the computer is setted by manual, please go to the router and enable the DHCP server to obtain the IP address;

4. After enable the DHCP server, check if the computer can access the Internet normally. (Note: If the computer displays the DHCP mode, then it can get the IP address and access the Internet normally);

5. Connect the network cable to the device and reset the new connection.

C) Wififi password reason

1. Check the WiFi password connected of the camera is same as the WiFi password of the connected router.

2. Check if the entered WiFi password has space or special characters(@,#,%,&).

D) Disconnected 5Ghz WIFI, unable to connect to wifi

1. Turn offff the 5Ghz network and keep the 2.4Ghz network. Disconnect the router and then restart the camera;

2. WiFi name naming cannot have “5Ghz” words.

3) Camera match the wififi successfully, but can’t hear the voice of camera

1. Reset the camera, then power offff and reconnect the camera (Only reset can remove local data );

2. Put the phone as close as possible to the camera and router when it is connecting;

3. Please turn offff the 5GHz wififi.

4) No pop-up message for motion detection alarm

1. Open permission setting in the system settings of mobile device to allow Littlelf Smart APP to receive message push noti fification;

2. After some Android phones exits the background, it is not possible to receive the alarm push information;

3. Turn offff motion detection in APP;

4. SMS and email reminders are not supported at this time.

5) Motion detection messages prompt frequently

1. If motion detection sensitivity is too high, light changes also can cause alarm;

2. Reduce sensitivity of alarms (recommended low level).

6) After inserting SD, it displays damaged

1. Before inserting the SD card, Disconnect the power. Connect the power to start after plugging in the card;

2. The SD card must be formatted on the computer before using the SD card;

3. When choosing SD, please choose genuine.

7) No playback record after insert the SD card

Please refer to the page 22

8) Watch videos with the same camera on difffferent devices

1. The master account can share the video to other account without limit quantity, but the shared accounts only have the rights to watch, snapshot and record video;

2.The main account name and password also could be logged in on other devices to view the video and use any function.

9) The scenarios for the reset key

1. Reset wififi information.

2. Wififi exception before connecting to the camera

3. wififi password error

4. wififi drop

5.replace new wifi

10) What to do if there is no solution in Q&A?

You can log on to Littlelf website: www.littlelf.com, ask for help online.

Requirements for Power Supply

This product is suitable for 5V2A power adapter only.

[Operating Requirement]

Please transport, use and store camera within the allowable humidity and temperature range.

Please avoid rain water and other liquids flflowing into the camera to avoid damage to internal components.

Do not use in strong lightning weather to avoid damage to internal components.

Please pay attention to the maintenance and maintenance of the camera of the camera. If you need to clean, please wipe it with dustless cloth.
