EKEN Video doordell User Manual

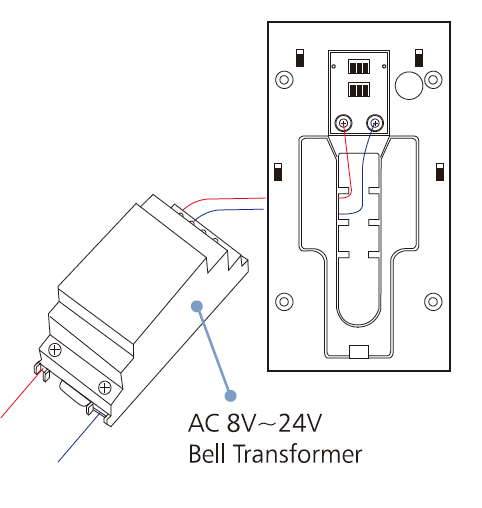

Connect the wires coming out of your wall to the screws on the back of your EKEN Doorbell. Please make sure the red wire can only connect to the left screw and the other wire can only connect to the right screw

Or Battery Power

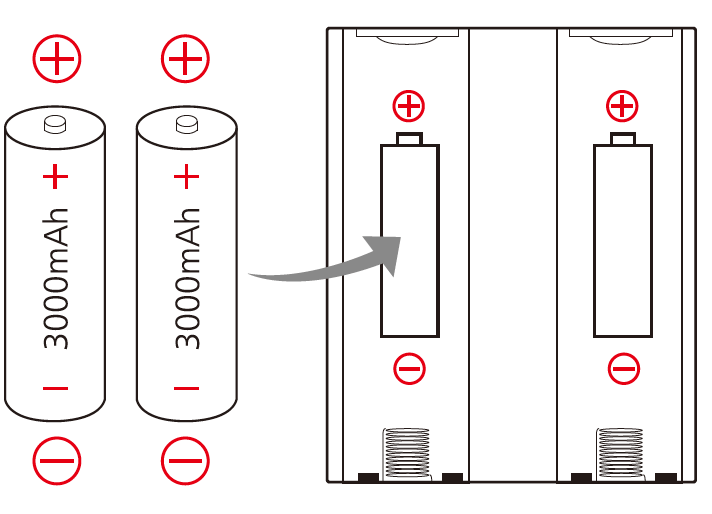

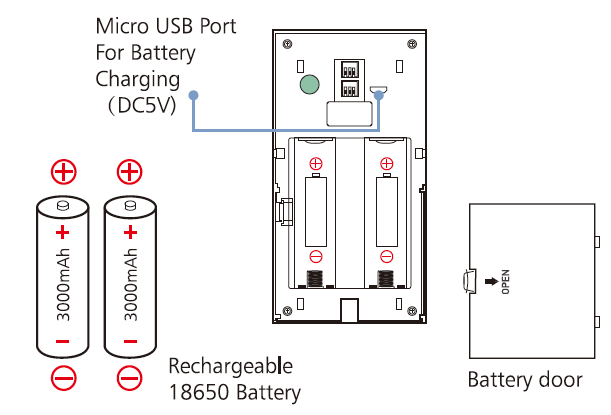

Fully charge the 18650 batteries before use. After charging, remove the battery door from the Video Doorbell, insert the batteries, and push into place. Two 18650 batteries (6000mAh) will last 6-8 months before needing to be recharged.

Rechargeable 18650 Battery

WARNING

Be sure to put 18650 batteries in the correct direction. Inserting batteries incorrectly will cause damage. permanent

Set Up Your Video Doorbell In The Tosee App

Download the ToSee app
The ToSee app will walk you th「ough setting up and remotely controlling your EKEN Doorbell. Search for “ToSee” on the Apple app store or Google Play.

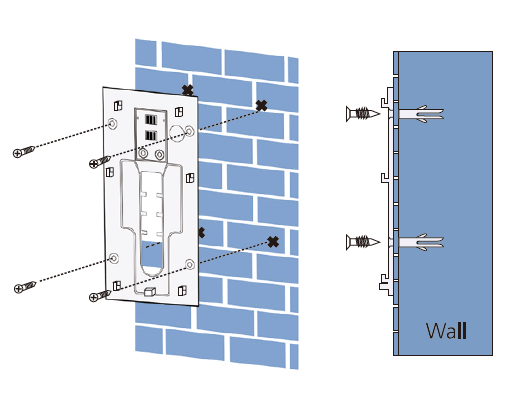

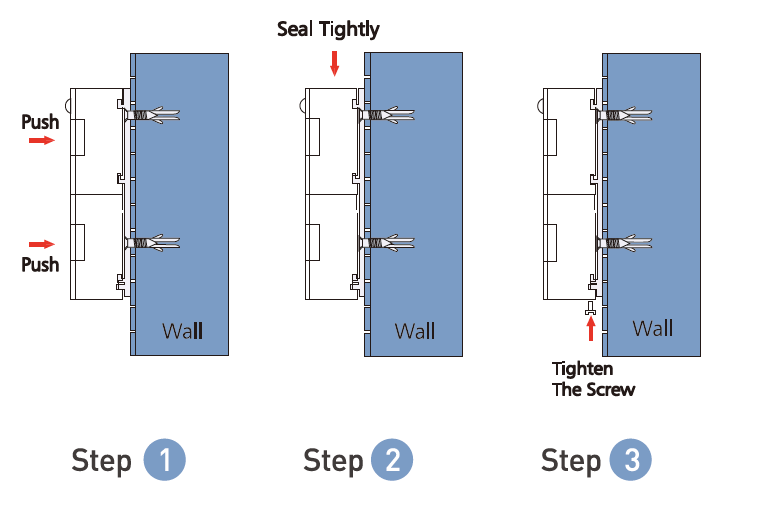

Install Your Video Doorbell On The Wall

Mark 4 drill holes and use a bit to drill holes in your wall and insert the anchors. Secure your EKEN Doorbell on the wall 4 mounting screws and 1 security screw.

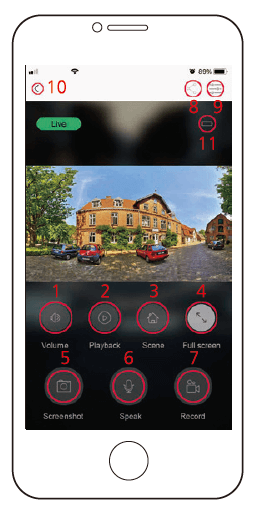

App Live View Interface

1. Volume

2. Playback

3. Video effects

4. Full screen

5. Screenshot

6. Talk to visitors

7. Record

8. Share

9. Settings

10.Back

11.Battery

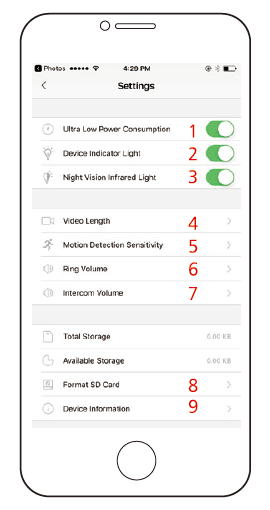

Settings

1. Ultra Low Power Consumption

2. Device Indicator Light

3. Night Vision Infrared Light

4. Video Length

5. Motion Detection Sensitivity

6. Ring Volume

7. Intercom Volume

8. Format SD Card

9. Device lnfomation

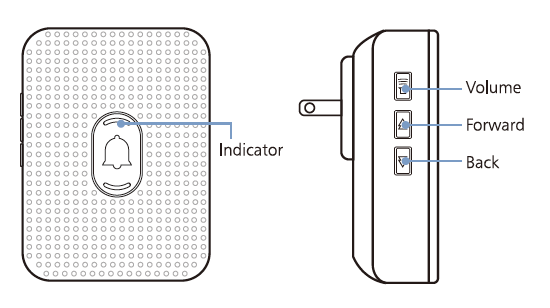

Wireless Chime (Optional)

Connect the EKEN video doorbell to the EKEN doorbell chime, and get instant alert in your home when someone rings the doorbell. Hear the doorbell chime when you are home, without checking your video doorbell app! The EKEN chime plugs into any wall outlet, you can place it anywhere in the home
